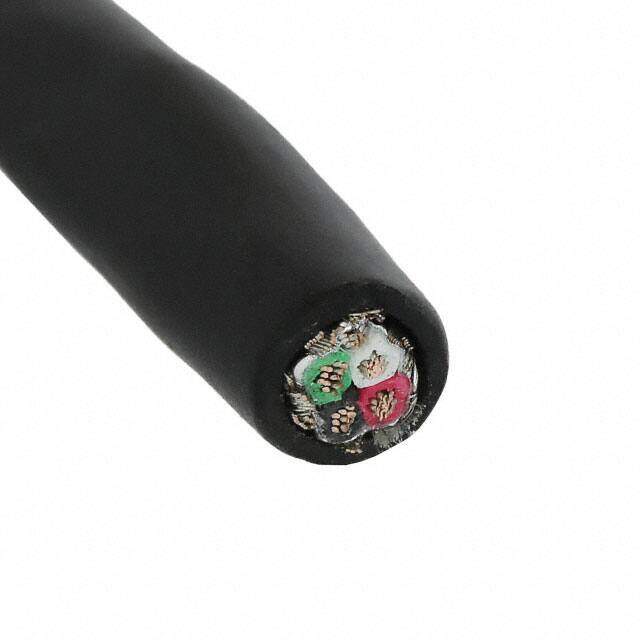

45154 BK199
RoHS
/
Package /
Category Cables, Wires / Multiple Conductor Cables
Description
45154 BLACK 1000 = 1000 FT
PDF
/
Buying Options
Total Price: USD $8.33
Unit Price: USD $8.3336
≥1 USD $8.3336
≥10 USD $7.6824
≥100 USD $7.39904
≥500 USD $7.237375
≥1000 USD $7.11832
Inventory: 1770
Minimum: 1
-
+
Technical Details
Compliance
Ratings ISO 10993
RoHS Status Non-RoHS Compliant
Dimensions
Jacket (Insulation) Thickness 0.0450 1.143mm
Length 1000.0' 304.8m
Technical
Shield Coverage 100%, 70%
Shield Type Foil, Braid
Conductor Insulation Thermoplastic Elastomer (TPE)
Jacket (Insulation) Diameter 0.292 (7.42mm)
Conductor Strand 7/28
Jacket Color Black
Cable Type Multi-Conductor
Voltage 300V
Wire Gauge 20 AWG
Number of Conductors 4
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Biological Compatibility, Drain Wire, Rip Cord
Series Xtra-Guard? 4
Packaging Spool
Operating Temperature -50°C~125°C
Physical
Shield Material Suprashield?; Copper, Tinned
Jacket (Insulation) Material Thermoplastic Elastomer (TPE)
Conductor Material Copper, Tinned
