45126 BK005
RoHS
RoHS compliant
RoHS compliantPackage /
Category Cables, Wires / Multiple Conductor Cables
Description

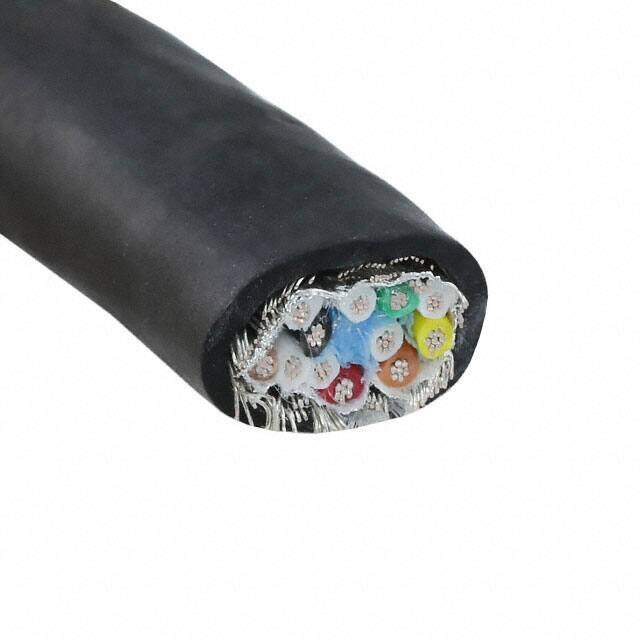

CABLE 6 PAIR 22AWG BLACK 100'
PDF
/
Buying Options
Total Price: USD $1181.89
Unit Price: USD $1181.8928
≥1 USD $1181.8928
≥10 USD $1176.39573
Inventory: 26
Minimum: 1
-
+
Technical Details
Technical
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Conductors 12 (6 Pair Twisted)
Wire Gauge 22 AWG
Voltage 300V
Cable Type Multi-Pair
Jacket Color Black
Conductor Strand 7/30
Jacket (Insulation) Diameter 0.449 (11.41mm)
Conductor Insulation Thermoplastic Elastomer (TPE)
Shield Type Foil, Braid
Shield Coverage 100%, 70%
Part Status Active
Feature Biological Compatibility, Drain Wire, Rip Cord
Series Xtra-Guard? 4
Published 2010
Packaging Spool
Operating Temperature -50°C~125°C
Dimensions
Length 100.0' 30.5m
Jacket (Insulation) Thickness 0.0550 1.397mm
Compliance
RoHS Status ROHS3 Compliant
Ratings ISO 10993
Physical
Shield Material Suprashield?; Copper, Tinned
Jacket (Insulation) Material Thermoplastic Elastomer (TPE)
Conductor Material Copper, Tinned
Supply Chain
Factory Lead Time 6 Weeks
