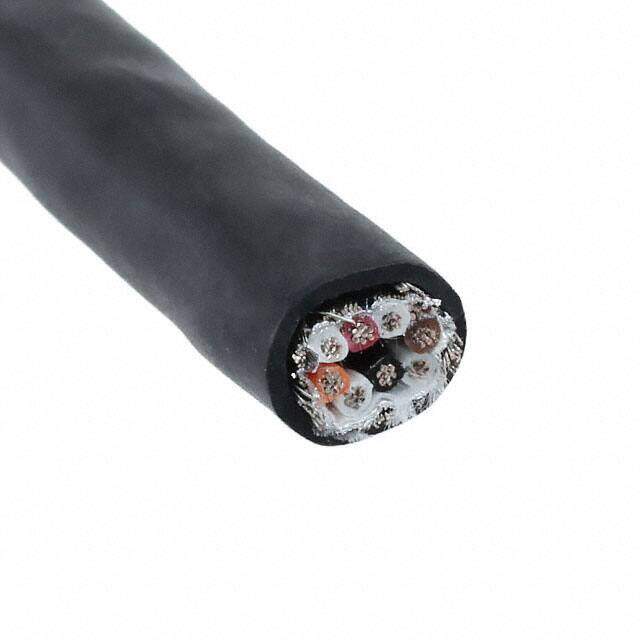

45124 BK199
RoHS
/
Package /
Category Cables, Wires / Multiple Conductor Cables
Description
45124 BLACK 1000 = 1000 FT
PDF
/
Buying Options
Total Price: USD $15.62
Unit Price: USD $15.62
≥1 USD $15.62
≥10 USD $14.4056
≥100 USD $13.87584
≥500 USD $13.573375
≥1000 USD $13.26952
≥3000 USD $12.435456
Inventory: 751
Minimum: 1
-
+
Technical Details
Physical
Conductor Material Copper, Tinned
Jacket (Insulation) Material Thermoplastic Elastomer (TPE)
Shield Material Suprashield?; Copper, Tinned
Technical
Operating Temperature -50°C~125°C
Packaging Spool
Series Xtra-Guard? 4
Feature Biological Compatibility, Drain Wire, Rip Cord
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Conductors 8 (4 Pair Twisted)
Wire Gauge 22 AWG
Voltage 300V
Connector Support Type WIRE AND CABLE
Cable Type Multi-Pair
Jacket Color Black
Conductor Strand 7/30
Jacket (Insulation) Diameter 0.368 (9.35mm)
Conductor Insulation Thermoplastic Elastomer (TPE)
Shield Type Foil, Braid
Shield Coverage 100%, 70%
Dimensions
Length 1000.0' 304.8m
Jacket (Insulation) Thickness 0.0450 1.143mm
Compliance
RoHS Status Non-RoHS Compliant
Ratings ISO 10993
