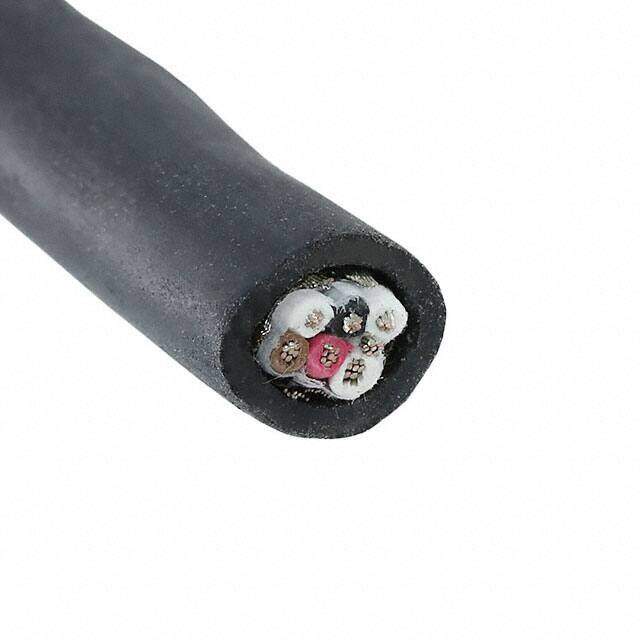

45123 BK199
RoHS
/
Package /
Category Cables, Wires / Multiple Conductor Cables
Description
45123 BLACK 1000 = 1000 FT
PDF
/
Buying Options
Total Price: USD $13.38
Unit Price: USD $13.3848
≥1 USD $13.3848
≥10 USD $12.3464
≥100 USD $11.89232
≥500 USD $11.631083
≥1000 USD $11.37136
≥3000 USD $10.6568
Inventory: 1100
Minimum: 1
-
+
Technical Details
Compliance
Ratings ISO 10993
RoHS Status Non-RoHS Compliant
Dimensions
Jacket (Insulation) Thickness 0.0450 1.143mm
Length 1000.0' 304.8m
Technical
Shield Coverage 100%, 70%
Shield Type Foil, Braid
Conductor Insulation Thermoplastic Elastomer (TPE)
Jacket (Insulation) Diameter 0.341 (8.66mm)
Conductor Strand 7/30
Jacket Color Black
Cable Type Multi-Pair
Voltage 300V
Wire Gauge 22 AWG
Number of Conductors 6 (3 Pair Twisted)
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Biological Compatibility, Drain Wire, Rip Cord
Series Xtra-Guard? 4
Packaging Spool
Operating Temperature -50°C~125°C
Physical
Shield Material Suprashield?; Copper, Tinned
Jacket (Insulation) Material Thermoplastic Elastomer (TPE)
Conductor Material Copper, Tinned
