45116 BK005
RoHS
RoHS compliant
RoHS compliantPackage /
Category Cables, Wires / Multiple Conductor Cables
Description

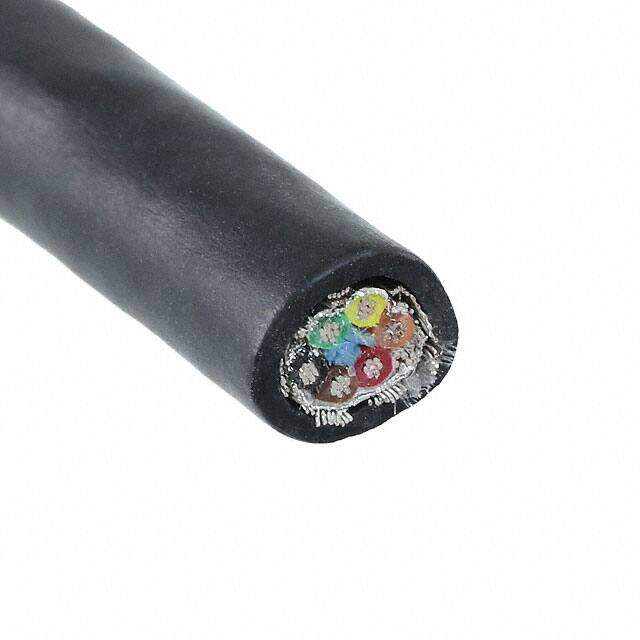

Multicore Cable, Xtra Guard 4, Screened, 6 Core, 24 AWG, 0.23 mm, 100 ft, 30.5 m
PDF
/
Inventory: 5942
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 6 Weeks
Physical
Conductor Material Copper, Tinned
Jacket (Insulation) Material Thermoplastic Elastomer (TPE)
Shield Material Suprashield?; Copper, Tinned
Technical
Operating Temperature -50°C~125°C
Packaging Spool
Published 2010
Series Xtra-Guard? 4
Feature Biological Compatibility, Drain Wire, Rip Cord
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Conductors 6
Wire Gauge 24 AWG
Voltage 300V
Cable Type Multi-Conductor
Jacket Color Black
Conductor Strand 7/32
Jacket (Insulation) Diameter 0.285 (7.24mm)
Conductor Insulation Thermoplastic Elastomer (TPE)
Shield Type Foil, Braid
Shield Coverage 100%, 70%
Dimensions
Length 100.0' 30.5m
Jacket (Insulation) Thickness 0.0420 1.067mm
Compliance
RoHS Status ROHS3 Compliant
Ratings ISO 10993
