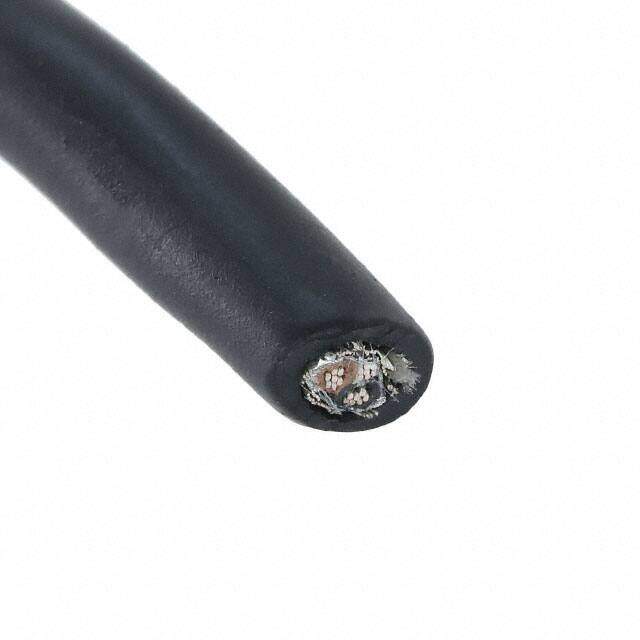

45112 BK199
RoHS
/
Package /
Category Cables, Wires / Multiple Conductor Cables
Description
45112 BLACK 1000 = 1000 FT
PDF
/
Inventory: 2216
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Ratings ISO 10993
RoHS Status Non-RoHS Compliant
Dimensions
Jacket (Insulation) Thickness 0.0420 1.067mm
Length 1000.0' 304.8m
Technical
Shield Coverage 100%, 70%
Shield Type Foil, Braid
Conductor Insulation Thermoplastic Elastomer (TPE)
Jacket (Insulation) Diameter 0.228 (5.79mm)
Conductor Strand 7/32
Jacket Color Black
Cable Type Multi-Conductor
Voltage 300V
Wire Gauge 24 AWG
Number of Conductors 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Biological Compatibility, Drain Wire, Rip Cord
Series Xtra-Guard? 4
Packaging Spool
Operating Temperature -50°C~125°C
Physical
Shield Material Suprashield?; Copper, Tinned
Jacket (Insulation) Material Thermoplastic Elastomer (TPE)
Conductor Material Copper, Tinned
