45093 BK001
RoHS
RoHS compliant
RoHS compliantPackage /
Category Cables, Wires / Multiple Conductor Cables
Description

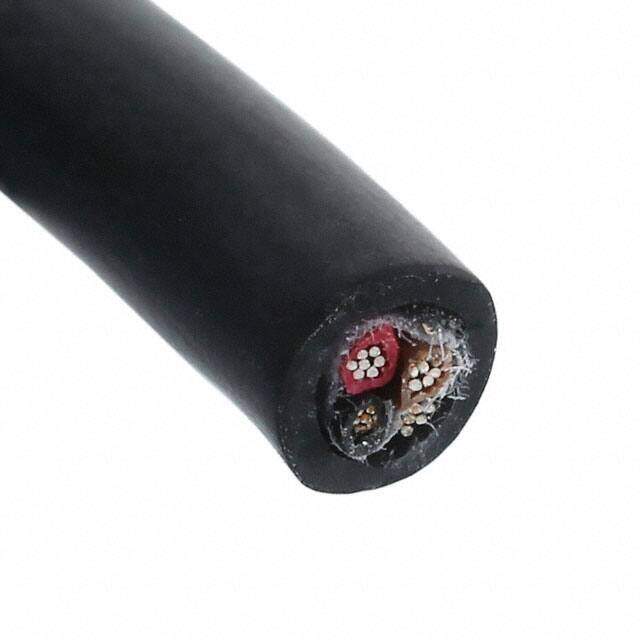

CABLE 3 COND 24AWG BLACK 1000'
PDF
/
Buying Options
Total Price: USD $2294.75
Unit Price: USD $2294.7496
≥1 USD $2294.7496
≥10 USD $2131.888
Inventory: 51
Minimum: 1
-
+
Technical Details
Compliance
Ratings ISO 10993
RoHS Status ROHS3 Compliant
Dimensions
Jacket (Insulation) Thickness 0.0420 1.067mm
Length 1000.0' 304.8m
Technical
Shield Coverage 100%
Shield Type Foil
Conductor Insulation Thermoplastic Elastomer (TPE)
Jacket (Insulation) Diameter 0.213 (5.41mm)
Conductor Strand 7/32
Jacket Color Black
Cable Type Multi-Conductor
Voltage 300V
Wire Gauge 24 AWG
Number of Conductors 3
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Biological Compatibility, Drain Wire, Rip Cord
Series Xtra-Guard? 4
Published 2011
Packaging Spool
Operating Temperature -50°C~125°C
Physical
Shield Material Aluminum
Jacket (Insulation) Material Thermoplastic Elastomer (TPE)
Conductor Material Copper, Tinned
Supply Chain
Factory Lead Time 6 Weeks
