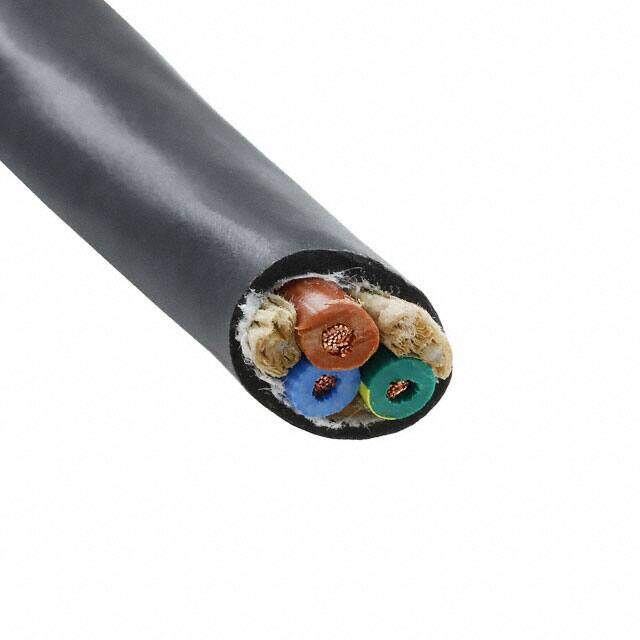

45063/1 BK199
RoHS
/
Package /
Category Cables, Wires / Multiple Conductor Cables
Description
45063/1 BLACK 1000 = 1000 FT
PDF
/
Inventory: 4233
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Ratings ISO 10993
RoHS Status Non-RoHS Compliant
Dimensions
Jacket (Insulation) Thickness 0.0450 1.143mm
Length 1000.0' 304.8m
Technical
Conductor Insulation Thermoplastic Elastomer (TPE)
Jacket (Insulation) Diameter 0.264 (6.71mm)
Conductor Strand 16/30
Jacket Color Black
Cable Type Multi-Conductor
Voltage 300V
Wire Gauge 18 AWG
Number of Conductors 3
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Biological Compatibility, Rip Cord
Series Xtra-Guard? 4
Packaging Spool
Operating Temperature -50°C~125°C
Physical
Jacket (Insulation) Material Thermoplastic Elastomer (TPE)
Conductor Material Copper, Tinned
