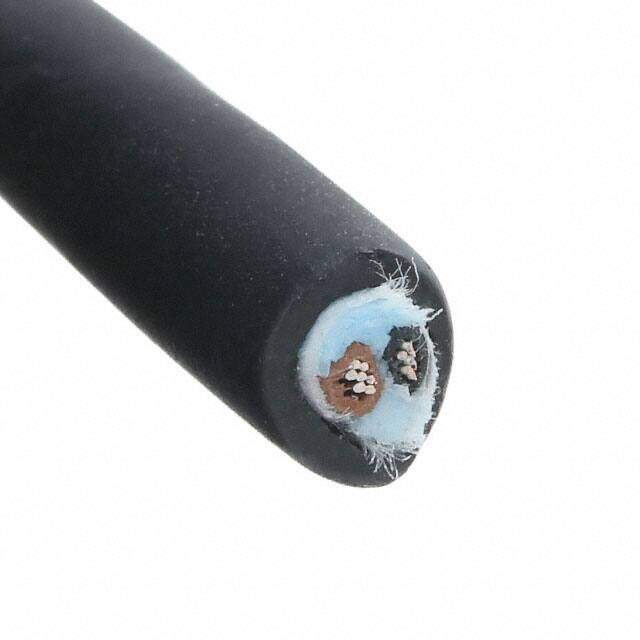

45012 BK199
RoHS
/
Package /
Category Cables, Wires / Multiple Conductor Cables
Description
45012 BLACK 1000 = 1000 FT
PDF
/
Inventory: 7059
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Conductor Material Copper, Tinned
Jacket (Insulation) Material Thermoplastic Elastomer (TPE)
Technical
Operating Temperature -50°C~125°C
Packaging Spool
Series Xtra-Guard? 4
Feature Biological Compatibility, Rip Cord
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Conductors 2
Wire Gauge 24 AWG
Voltage 300V
Connector Support Type WIRE AND CABLE
Cable Type Multi-Conductor
Jacket Color Black
Conductor Strand 7/32
Jacket (Insulation) Diameter 0.200 (5.08mm)
Conductor Insulation Thermoplastic Elastomer (TPE)
Dimensions
Length 1000.0' 304.8m
Jacket (Insulation) Thickness 0.0420 1.067mm
Compliance
RoHS Status Non-RoHS Compliant
Ratings ISO 10993
