3467C SL001
RoHS
RoHS compliant
RoHS compliantPackage /
Category Cables, Wires / Multiple Conductor Cables
Description

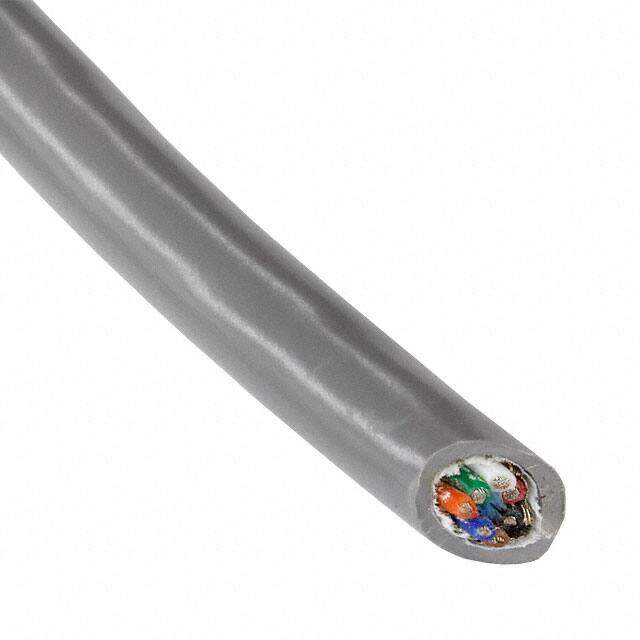

CABLE 7COND 28AWG SHLD 1000'
PDF
/
Buying Options
Total Price: USD $2352.28
Unit Price: USD $2352.2752
≥1 USD $2352.2752
Inventory: 38
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Jacket (Insulation) Thickness 0.0350 0.889mm
Length 1000.0' 304.8m
Technical
Shield Coverage 100%, 65%
Shield Type Foil, Braid
Conductor Insulation Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Diameter 0.202 (5.13mm)
Usage Communication, Control
Conductor Strand 7/36
Jacket Color Slate
Cable Type Multi-Conductor
Connector Support Type WIRE AND CABLE
Voltage 300V
Wire Gauge 28 AWG
Number of Conductors 7
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Drain Wire
Published 2001
Packaging Spool
Operating Temperature -20°C~80°C
Physical
Shield Material Aluminum; Copper, Tinned
Jacket (Insulation) Material Poly-Vinyl Chloride (PVC)
Conductor Material Copper, Tinned
Supply Chain
Factory Lead Time 5 Weeks
