3231 SL005
RoHS
RoHS compliant
RoHS compliantPackage /
Category Cables, Wires / Multiple Conductor Cables
Description

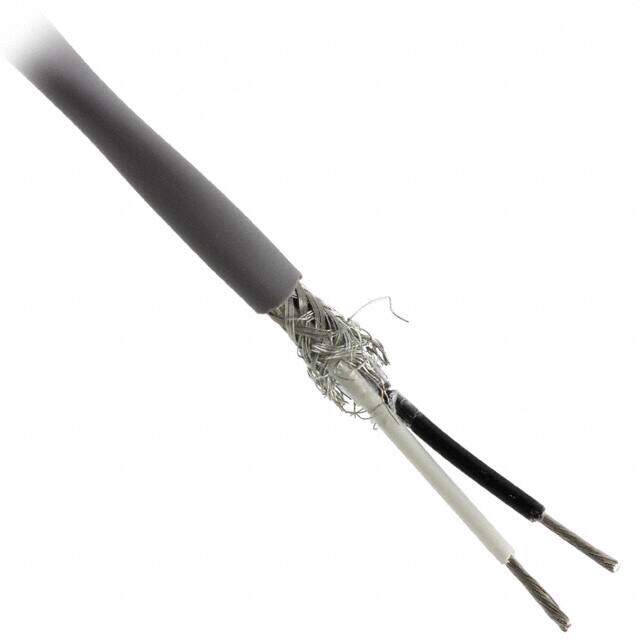

MULTI-PAIR 2COND 20AWG SHLD 100'
PDF
/
Buying Options
Total Price: USD $223.84
Unit Price: USD $223.8368
≥1 USD $223.8368
Inventory: 56
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 5 Weeks
Physical
Conductor Material Copper, Tinned
Jacket (Insulation) Material Poly-Vinyl Chloride (PVC)
Shield Material Copper, Tinned
Technical
Operating Temperature -55°C~105°C
Packaging Spool
Published 2009
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Conductors 2 (1 Pair Twisted)
Wire Gauge 20 AWG
Voltage 600V
Connector Support Type WIRE AND CABLE
Cable Type Multi-Conductor
Jacket Color Slate
Conductor Strand 19/32
Usage Communication, Control
Jacket (Insulation) Diameter 0.195 (4.95mm)
Conductor Insulation Poly-Vinyl Chloride (PVC)
Shield Type Braid
Shield Coverage 90%
Dimensions
Length 100.0' 30.5m
Jacket (Insulation) Thickness 0.0190 0.483mm
Compliance
RoHS Status ROHS3 Compliant
