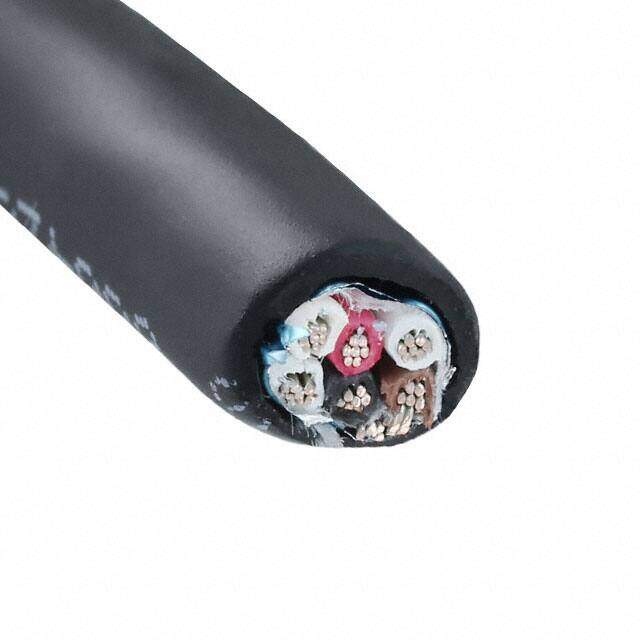

25493 BK005
RoHS
RoHS compliant
RoHS compliantPackage /
Category Cables, Wires / Multiple Conductor Cables
Description
MULTI-PAIR 6COND 24AWG BLK 100'
PDF
/
Buying Options
Total Price: USD $391.46
Unit Price: USD $391.4592
≥1 USD $391.4592
≥10 USD $381.01653
Inventory: 36
Minimum: 1
-
+
Technical Details
Compliance
Ratings ISO 10993, UL Style 20668
RoHS Status ROHS3 Compliant
Dimensions
Jacket (Insulation) Thickness 0.0320 0.813mm
Length 100.0' 30.5m
Technical
Shield Coverage 100%
Shield Type Foil
Conductor Insulation Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Diameter 0.228 (5.79mm)
Conductor Strand 7/32
Jacket Color Black
Cable Type Multi-Pair
Voltage 300V
Wire Gauge 24 AWG
Number of Conductors 6 (3 Pair Twisted)
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Biological Compatibility, Drain Wire, Rip Cord
Series Xtra-Guard? 2
Published 2008
Packaging Spool
Operating Temperature -30°C~90°C
Physical
Shield Material Aluminum
Jacket (Insulation) Material Polyurethane (PU)
Conductor Material Copper, Tinned
Supply Chain
Factory Lead Time 6 Weeks
Alternative Model
