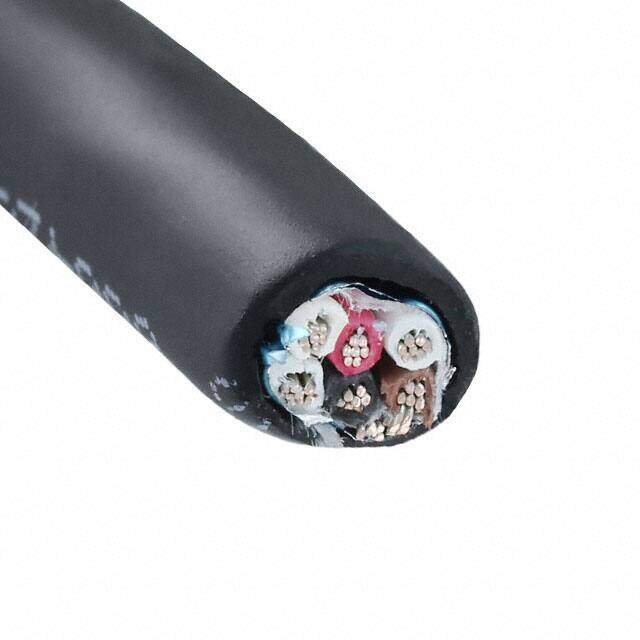

25483 BK199

Alpha Wire
RoHS
RoHS RoHS compliant
Package /
Category Cables, Wires / Multiple Conductor Cables
Description 25483 BLACK 1000 = 1000 FT
PDF
/
Buying Options
Total Price: USD $8.7
Unit Price: USD $8.7032
≥1 USD $8.7032
≥10 USD $8.0168
≥100 USD $7.73344
≥500 USD $7.573025
≥1000 USD $7.37088
≥3000 USD $6.928064
Inventory: 1057
Minimum: 1
-
+

Technical Details

Compliance

Ratings ISO 10993, UL Style 20668
RoHS Status ROHS3 Compliant

Dimensions

Jacket (Insulation) Thickness 0.0320 0.813mm
Length 1000.0' 304.8m

Technical

Shield Coverage 100%
Shield Type Foil
Conductor Insulation Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Diameter 0.249 (6.32mm)
Conductor Strand 7/30
Jacket Color Black
Cable Type Multi-Pair
Voltage 300V
Wire Gauge 22 AWG
Number of Conductors 6 (3 Pair Twisted)
Reach Compliance Code not_compliant
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Biological Compatibility, Drain Wire, Rip Cord
Series Xtra-Guard? 2
Packaging Spool
Operating Temperature -30°C~90°C

Physical

Shield Material Aluminum
Jacket (Insulation) Material Polyurethane (PU)
Conductor Material Copper, Tinned
