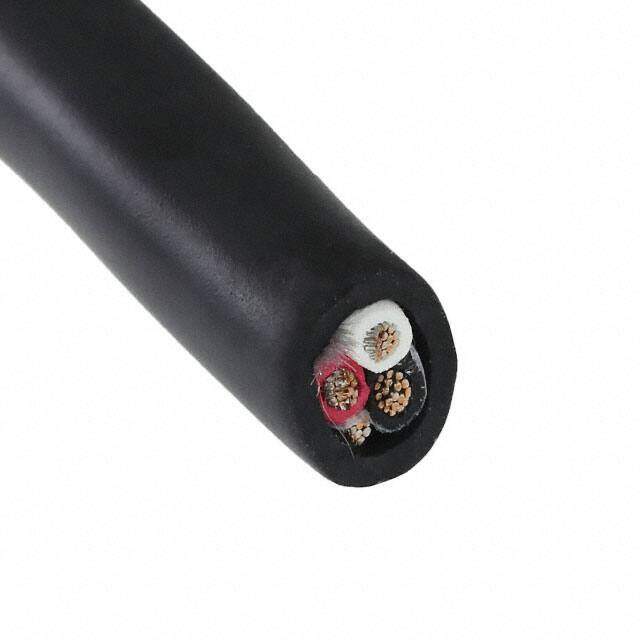

25463 BK199
RoHS
RoHS compliant
RoHS compliantPackage /
Category Cables, Wires / Multiple Conductor Cables
Description
25463 BLACK 1000 = 1000 FT
PDF
/
Buying Options
Total Price: USD $5.93
Unit Price: USD $5.9312
≥1 USD $5.9312
≥10 USD $5.4648
≥100 USD $5.27296
≥500 USD $5.163083
≥1000 USD $5.02568
≥3000 USD $4.72384
Inventory: 1168
Minimum: 1
-
+
Technical Details
Physical
Conductor Material Copper, Tinned
Jacket (Insulation) Material Polyurethane (PU)
Shield Material Aluminum
Technical
Operating Temperature -30°C~90°C
Packaging Spool
Series Xtra-Guard? 2
Feature Biological Compatibility, Drain Wire, Rip Cord
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Reach Compliance Code not_compliant
Number of Conductors 3
Wire Gauge 20 AWG
Voltage 300V
Cable Type Multi-Conductor
Jacket Color Black
Conductor Strand 7/28
Jacket (Insulation) Diameter 0.223 (5.66mm)
Conductor Insulation Poly-Vinyl Chloride (PVC)
Shield Type Foil
Shield Coverage 100%
Dimensions
Length 1000.0' 304.8m
Jacket (Insulation) Thickness 0.0320 0.813mm
Compliance
RoHS Status ROHS3 Compliant
Ratings ISO 10993, UL Style 20668
