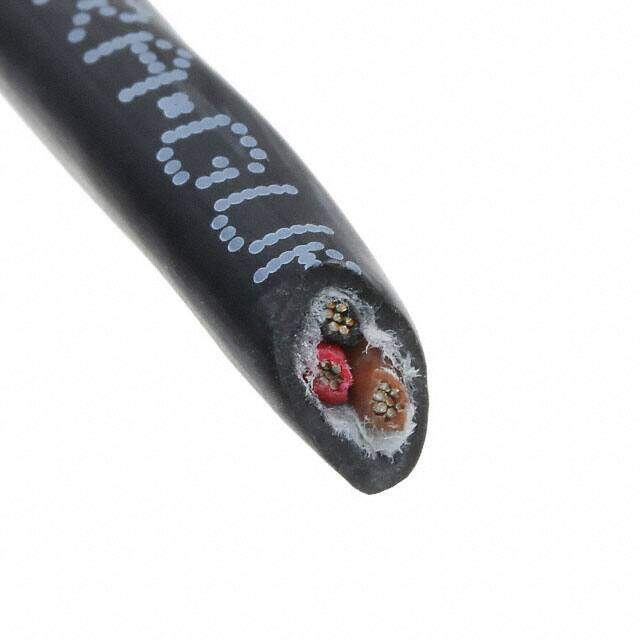

25450/15 BK199
RoHS
RoHS compliant
RoHS compliantPackage /
Category Cables, Wires / Multiple Conductor Cables
Description
25450/15 BLACK 1000 = 1000 FT
PDF
/
Inventory: 1537
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Ratings ISO 10993, UL Style 20952
RoHS Status ROHS3 Compliant
Dimensions
Jacket (Insulation) Thickness 0.0630 1.600mm
Length 1000.0' 304.8m
Technical
Shield Coverage 100%
Shield Type Foil
Conductor Insulation Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Diameter 0.771 (19.58mm)
Conductor Strand 41/30
Jacket Color Black
Cable Type Multi-Conductor
Connector Support Type WIRE AND CABLE
Voltage 600V
Wire Gauge 14 AWG
Number of Conductors 15
Reach Compliance Code not_compliant
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Biological Compatibility, Drain Wire, Rip Cord
Series Xtra-Guard? 2
Packaging Spool
Operating Temperature -30°C~105°C
Physical
Shield Material Aluminum
Jacket (Insulation) Material Polyurethane (PU)
Conductor Material Copper, Tinned
