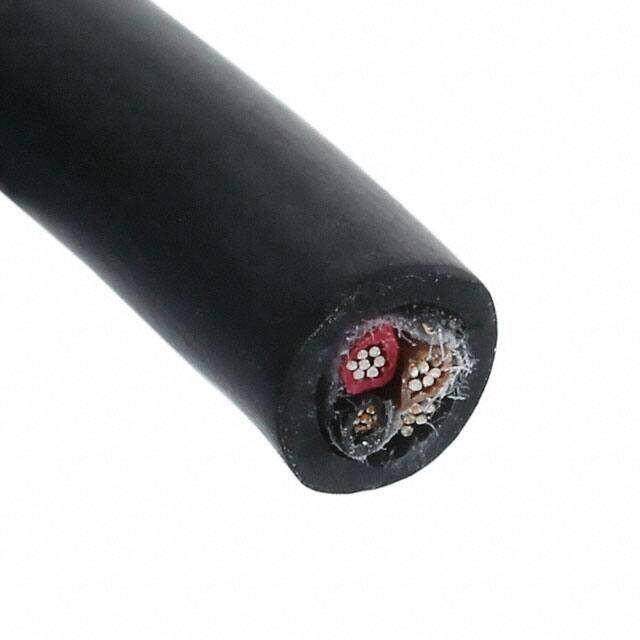

25430/3 BK199

Alpha Wire
RoHS
RoHS RoHS compliant
Package /
Category Cables, Wires / Multiple Conductor Cables
Description 25430/3 BLACK 1000 = 1000 FT
PDF
/
Inventory: 1634
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Physical

Conductor Material Copper, Tinned
Jacket (Insulation) Material Polyurethane (PU)
Shield Material Aluminum

Technical

Operating Temperature -30°C~105°C
Packaging Spool
Series Xtra-Guard? 2
Feature Biological Compatibility, Drain Wire, Rip Cord
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Reach Compliance Code not_compliant
Number of Conductors 3
Wire Gauge 18 AWG
Voltage 600V
Connector Support Type WIRE AND CABLE
Cable Type Multi-Conductor
Jacket Color Black
Conductor Strand 16/30
Jacket (Insulation) Diameter 0.373 (9.47mm)
Conductor Insulation Poly-Vinyl Chloride (PVC)
Shield Type Foil
Shield Coverage 100%

Dimensions

Length 1000.0' 304.8m
Jacket (Insulation) Thickness 0.0630 1.600mm

Compliance

RoHS Status ROHS3 Compliant
Ratings ISO 10993, UL Style 20952
