25276 BK005
RoHS
RoHS compliant
RoHS compliantPackage /
Category Cables, Wires / Multiple Conductor Cables
Description

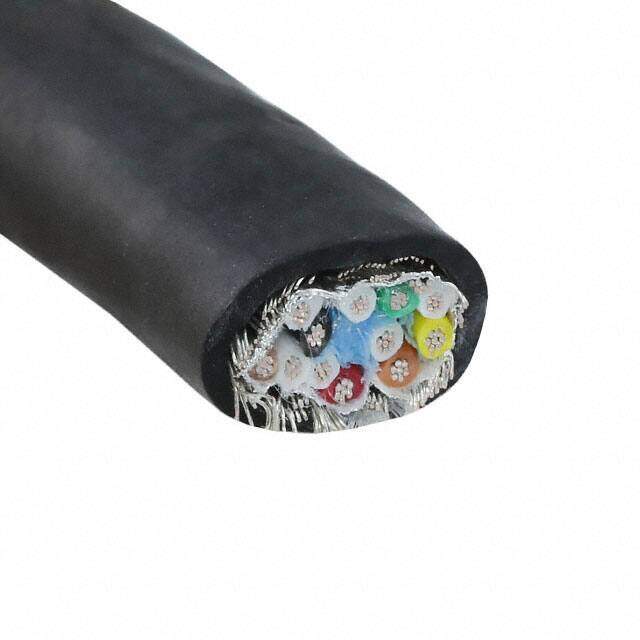

Alpha Wire 6 Core Xtra-Guard 2 Screened Black Polyurethane PUR Industrial Cable 0.23 mm CSA, 30m
PDF
/
Buying Options
Total Price: USD $730.44
Unit Price: USD $730.444
≥1 USD $730.444
Inventory: 52
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 6 Weeks
Physical
Conductor Material Copper, Tinned
Jacket (Insulation) Material Polyurethane (PU)
Shield Material Suprashield?; Copper, Tinned
Technical
Operating Temperature -30°C~90°C
Packaging Spool
Published 2010
Series Xtra-Guard? 2
Feature Biological Compatibility, Drain Wire, Rip Cord
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Conductors 12 (6 Pair Twisted)
Wire Gauge 24 AWG
Voltage 300V
Cable Type Multi-Pair
Jacket Color Black
Conductor Strand 7/32
Jacket (Insulation) Diameter 0.314 (7.98mm)
Conductor Insulation Poly-Vinyl Chloride (PVC)
Shield Type Foil, Braid
Shield Coverage 100%, 70%
Dimensions
Length 100.0' 30.5m
Jacket (Insulation) Thickness 0.0320 0.813mm
Compliance
RoHS Status ROHS3 Compliant
Ratings ISO 10993, UL Style 20668
