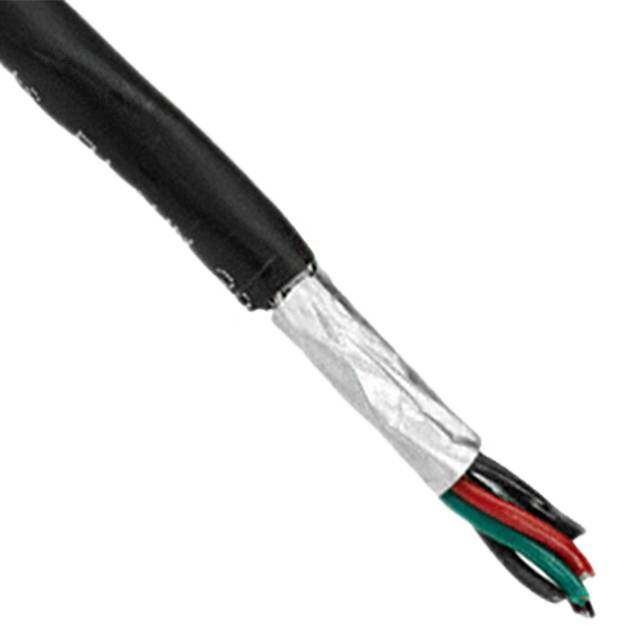

25180/40 BK005
RoHS
RoHS compliant
RoHS compliantPackage /
Category Cables, Wires / Multiple Conductor Cables
Description
CABLE 40COND 16AWG BLK SHLD 100'
PDF
/
Inventory: 4747
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Conductor Material Copper, Tinned
Jacket (Insulation) Material Polyurethane (PU)
Shield Material Suprashield?; Copper, Tinned
Technical
Operating Temperature -30°C~90°C
Packaging Spool
Published 2010
Series Xtra-Guard? 2
Feature Biological Compatibility, Drain Wire, Rip Cord
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Conductors 40
Wire Gauge 16 AWG
Voltage 300V
Cable Type Multi-Conductor
Jacket Color Black
Conductor Strand 19/0.0117
Jacket (Insulation) Diameter 0.869 (22.07mm)
Conductor Insulation Poly-Vinyl Chloride (PVC)
Shield Type Foil, Braid
Shield Coverage 100%, 70%
Dimensions
Length 100.0' 30.5m
Jacket (Insulation) Thickness 0.0830 2.108mm
Compliance
RoHS Status ROHS3 Compliant
Ratings ISO 10993, UL Style 20668
