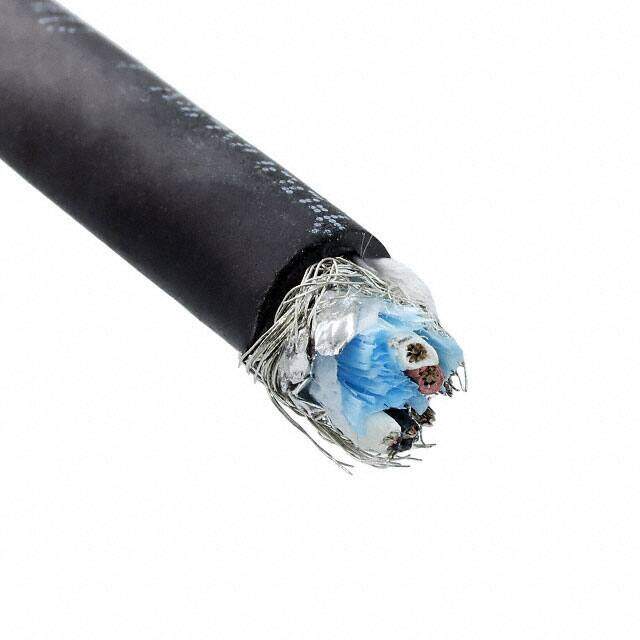

25122 BK199
RoHS
RoHS compliant
RoHS compliantPackage /
Category Cables, Wires / Multiple Conductor Cables
Description
25122 BLACK 1000 = 1000 FT
PDF
/
Buying Options
Total Price: USD $6.62
Unit Price: USD $6.6176
≥1 USD $6.6176
≥10 USD $6.10133
≥100 USD $5.87664
≥500 USD $5.748917
≥1000 USD $5.654
Inventory: 1086
Minimum: 1
-
+
Technical Details
Physical
Conductor Material Copper, Tinned
Jacket (Insulation) Material Polyurethane (PU)
Shield Material Suprashield?; Copper, Tinned
Technical
Operating Temperature -30°C~90°C
Packaging Spool
Series Xtra-Guard? 2
Feature Biological Compatibility, Drain Wire, Rip Cord
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Reach Compliance Code not_compliant
Number of Conductors 4 (2 Pair Twisted)
Wire Gauge 22 AWG
Voltage 300V
Cable Type Multi-Pair
Jacket Color Black
Conductor Strand 7/30
Jacket (Insulation) Diameter 0.260 (6.60mm)
Conductor Insulation Poly-Vinyl Chloride (PVC)
Shield Type Foil, Braid
Shield Coverage 100%, 70%
Dimensions
Length 1000.0' 304.8m
Jacket (Insulation) Thickness 0.0320 0.813mm
Compliance
RoHS Status ROHS3 Compliant
Ratings ISO 10993, UL Style 20668
