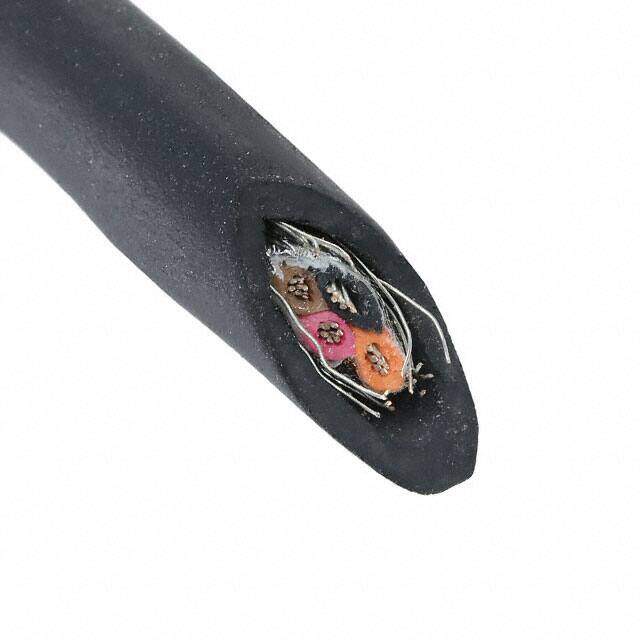

25114 BK199
RoHS
RoHS compliant
RoHS compliantPackage /
Category Cables, Wires / Multiple Conductor Cables
Description
25114 BLACK 1000 = 1000 FT
PDF
/
Inventory: 945
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Conductor Material Copper, Tinned
Jacket (Insulation) Material Polyurethane (PU)
Shield Material Suprashield?; Copper, Tinned
Technical
Operating Temperature -30°C~90°C
Packaging Spool
Series Xtra-Guard? 2
Feature Biological Compatibility, Drain Wire, Rip Cord
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Reach Compliance Code not_compliant
Number of Conductors 4
Wire Gauge 24 AWG
Voltage 300V
Connector Support Type WIRE AND CABLE
Cable Type Multi-Conductor
Jacket Color Black
Conductor Strand 7/32
Jacket (Insulation) Diameter 0.203 (5.16mm)
Conductor Insulation Poly-Vinyl Chloride (PVC)
Shield Type Foil, Braid
Shield Coverage 100%, 70%
Dimensions
Length 1000.0' 304.8m
Jacket (Insulation) Thickness 0.0320 0.813mm
Compliance
RoHS Status ROHS3 Compliant
Ratings ISO 10993, UL Style 20668
