25108 BK005
RoHS
RoHS compliant
RoHS compliantPackage /
Category Cables, Wires / Multiple Conductor Cables
Description

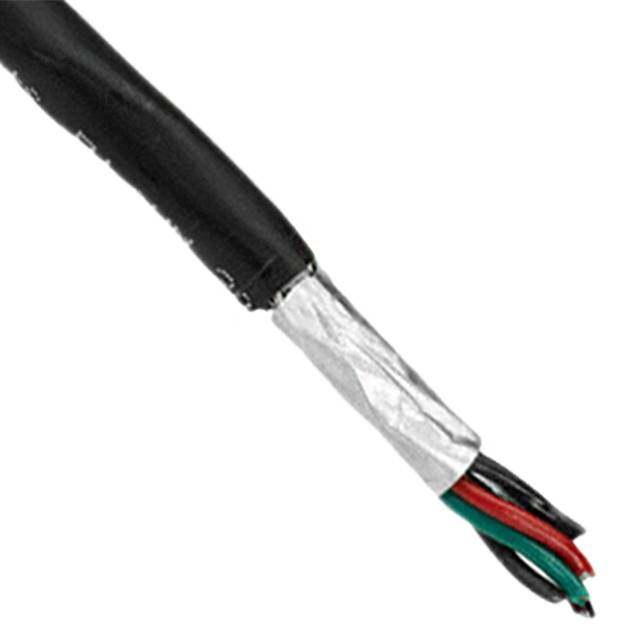

CABLE 8COND 22AWG BLK SHLD 100'
PDF
/
Inventory: 3190
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Ratings ISO 10993, UL Style 20668
RoHS Status ROHS3 Compliant
Dimensions
Jacket (Insulation) Thickness 0.0320 0.813mm
Length 100.0' 30.5m
Technical
Shield Coverage 100%, 70%
Shield Type Foil, Braid
Conductor Insulation Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Diameter 0.263 (6.68mm)
Conductor Strand 7/30
Jacket Color Black
Cable Type Multi-Conductor
Voltage 300V
Wire Gauge 22 AWG
Number of Conductors 8
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Biological Compatibility, Drain Wire, Rip Cord
Series Xtra-Guard? 2
Published 2010
Packaging Spool
Operating Temperature -30°C~90°C
Physical
Shield Material Suprashield?; Copper, Tinned
Jacket (Insulation) Material Polyurethane (PU)
Conductor Material Copper, Tinned
