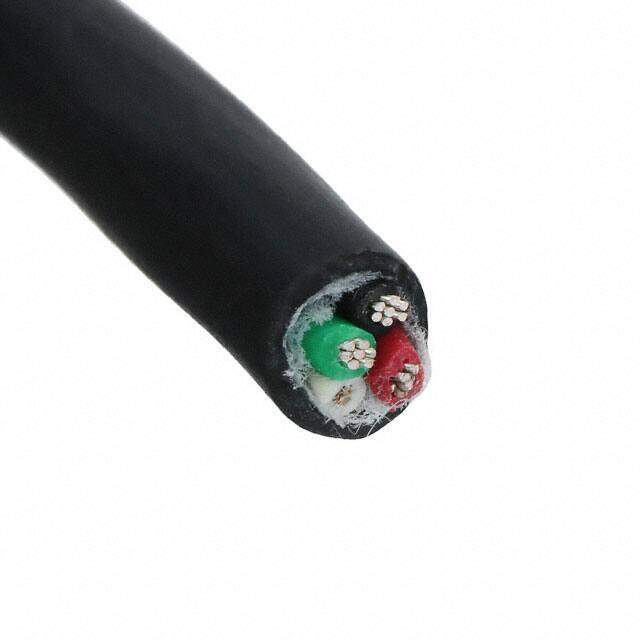

25074 BK199
RoHS
RoHS compliant
RoHS compliantPackage /
Category Cables, Wires / Multiple Conductor Cables
Description
25074 BLACK 1000 = 1000 FT
PDF
/
Inventory: 2545
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Conductor Material Copper, Tinned
Jacket (Insulation) Material Polyurethane (PU)
Compliance
Ratings ISO 10993, UL Style 20668
RoHS Status ROHS3 Compliant
Dimensions
Jacket (Insulation) Thickness 0.0320 0.813mm
Length 1000.0' 304.8m
Technical
Conductor Insulation Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Diameter 0.288 (7.32mm)
Conductor Strand 19/0.0117
Jacket Color Black
Cable Type Multi-Conductor
Connector Support Type WIRE AND CABLE
Voltage 300V
Wire Gauge 16 AWG
Number of Conductors 4
Reach Compliance Code not_compliant
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Biological Compatibility, Rip Cord
Series Xtra-Guard? 2
Packaging Spool
Operating Temperature -30°C~90°C
