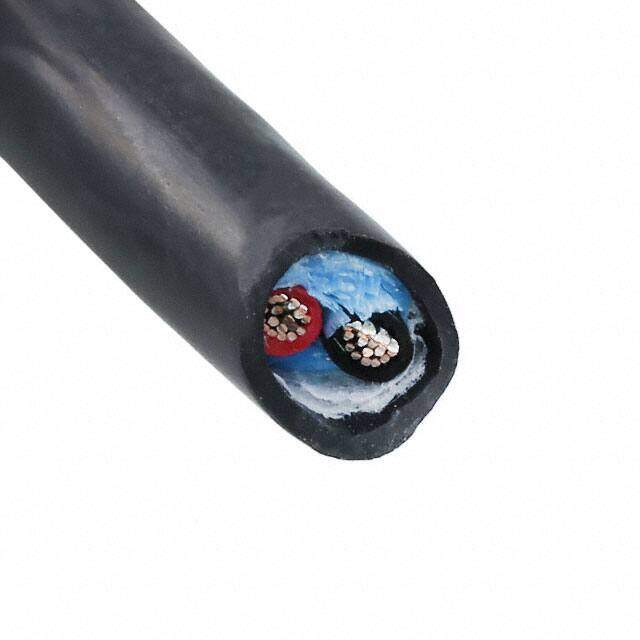

25072 BK199
RoHS
RoHS compliant
RoHS compliantPackage /
Category Cables, Wires / Multiple Conductor Cables
Description
25072 BLACK 1000 = 1000 FT
PDF
/
Buying Options
Total Price: USD $6.48
Unit Price: USD $6.4768
≥1 USD $6.4768
≥10 USD $5.96933
≥100 USD $5.76048
≥500 USD $5.639542
≥1000 USD $5.48944
≥3000 USD $5.159616
Inventory: 1146
Minimum: 1
-
+
Technical Details
Physical
Conductor Material Copper, Tinned
Jacket (Insulation) Material Polyurethane (PU)
Technical
Operating Temperature -30°C~90°C
Packaging Spool
Series Xtra-Guard? 2
Feature Biological Compatibility, Rip Cord
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Reach Compliance Code not_compliant
Number of Conductors 2
Wire Gauge 16 AWG
Voltage 300V
Connector Support Type WIRE AND CABLE
Cable Type Multi-Conductor
Jacket Color Black
Conductor Strand 19/0.0117
Jacket (Insulation) Diameter 0.250 (6.35mm)
Conductor Insulation Poly-Vinyl Chloride (PVC)
Dimensions
Length 1000.0' 304.8m
Jacket (Insulation) Thickness 0.0320 0.813mm
Compliance
RoHS Status ROHS3 Compliant
Ratings ISO 10993, UL Style 20668
