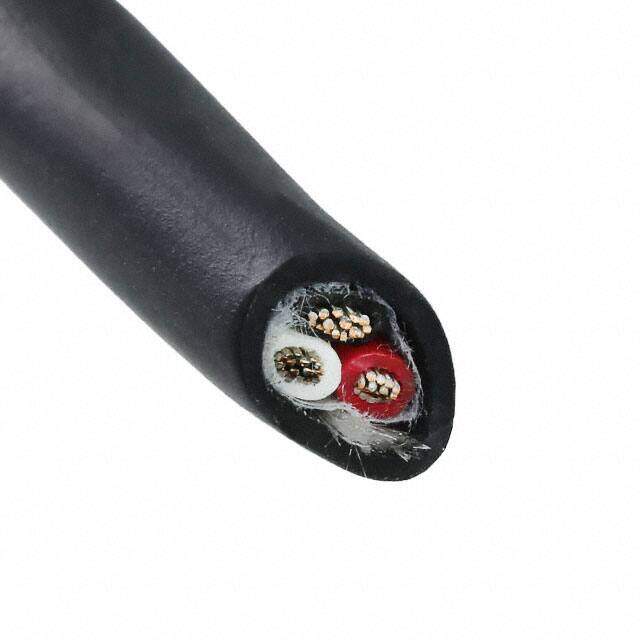

25053 BK199
RoHS
RoHS compliant
RoHS compliantPackage /
Category Cables, Wires / Multiple Conductor Cables
Description
25053 BLACK 1000 = 1000 FT
PDF
/
Buying Options
Total Price: USD $4.8
Unit Price: USD $4.8048
≥1 USD $4.8048
≥10 USD $4.42933
≥100 USD $4.27328
≥500 USD $4.183775
≥1000 USD $4.07176
≥3000 USD $3.827296
Inventory: 954
Minimum: 1
-
+
Technical Details
Compliance
Ratings ISO 10993, UL Style 20668
RoHS Status ROHS3 Compliant
Dimensions
Jacket (Insulation) Thickness 0.0320 0.813mm
Length 1000.0' 304.8m
Technical
Conductor Insulation Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Diameter 0.219 (5.56mm)
Conductor Strand 7/28
Jacket Color Black
Cable Type Multi-Conductor
Connector Support Type WIRE AND CABLE
Voltage 300V
Wire Gauge 20 AWG
Number of Conductors 3
Reach Compliance Code not_compliant
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Biological Compatibility, Rip Cord
Series Xtra-Guard? 2
Packaging Spool
Operating Temperature -30°C~90°C
Physical
Jacket (Insulation) Material Polyurethane (PU)
Conductor Material Copper, Tinned
