2215C SL001
RoHS
RoHS compliant
RoHS compliantPackage /
Category Cables, Wires / Multiple Conductor Cables
Description

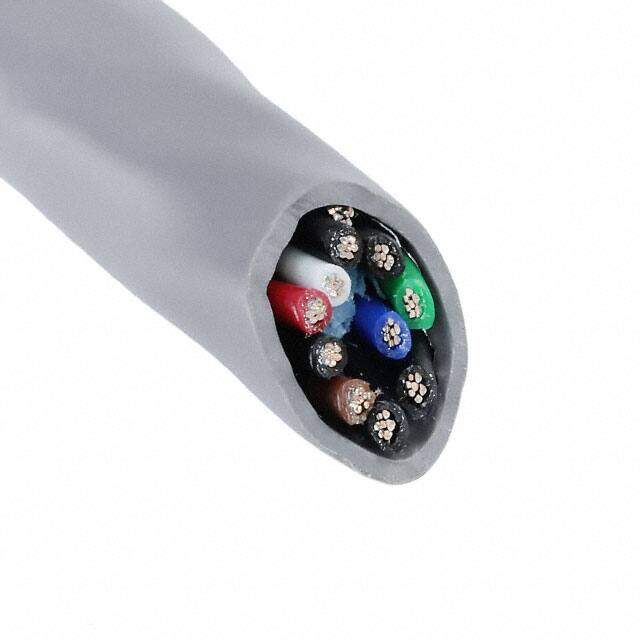

CABLE 5PAIR 22AWG SHLD 1000'
PDF
/
Buying Options
Total Price: USD $1564.58
Unit Price: USD $1564.5784
≥1 USD $1564.5784
Inventory: 72
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Jacket (Insulation) Thickness 0.0320 0.813mm
Length 1000.0' 304.8m
Technical
Shield Coverage 100%
Shield Type Foil
Conductor Insulation Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Diameter 0.290 (7.37mm)
Usage Communication, Control
Conductor Strand 7/30
Jacket Color Slate
Cable Type Multi-Pair
Connector Support Type WIRE AND CABLE
Voltage 150V
Wire Gauge 22 AWG
Number of Conductors 10 (5 Pair Twisted)
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Drain Wire
Published 2009
Packaging Spool
Operating Temperature -20°C~80°C
Physical
Shield Material Aluminum
Jacket (Insulation) Material Poly-Vinyl Chloride (PVC)
Conductor Material Copper, Tinned
Supply Chain
Factory Lead Time 5 Weeks
