1943/3F BK003
RoHS
RoHS compliant
RoHS compliantPackage /
Category Cables, Wires / Multiple Conductor Cables
Description

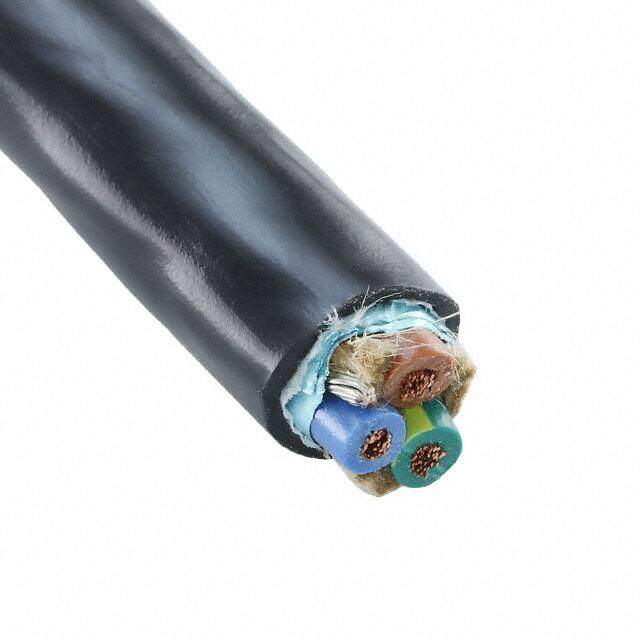

CABLE 3COND 14AWG BLK SHLD 250'
PDF
/
Buying Options
Total Price: USD $897.97
Unit Price: USD $897.9696
≥1 USD $897.9696
≥10 USD $823.658
≥100 USD $815.50304
Inventory: 118
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 10 Weeks
Physical
Insulation Material POLYVINYL CHLORIDE
Conductor Material Copper, Bare
Jacket (Insulation) Material Poly-Vinyl Chloride (PVC)
Shield Material Aluminum
Technical
Operating Temperature -30°C~105°C
Published 2004
Feature Drain Wire
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Resistance 0.009Ohm
Shielding YES
Construction STRANDED
Number of Conductors 3
Approval Agency CE; CSA; UL
Wire Gauge 14 AWG
Voltage 300V
Connector Support Type WIRE AND CABLE
Cable Type Multi-Conductor
Jacket Color Black
Conductor Strand 41/30
Jacket (Insulation) Diameter 0.372 (9.45mm)
Conductor Insulation Poly-Vinyl Chloride (PVC)
Shield Type Foil
Shield Coverage 100%
Wire and Cable Name FLEXIBLE CORD AND FIXTURE WIRE
Dimensions
Length 250.0' 76.2m
Jacket (Insulation) Thickness 0.0320 0.813mm
Compliance
RoHS Status ROHS3 Compliant
