1932/3 BK003
RoHS
RoHS compliant
RoHS compliantPackage /
Category Cables, Wires / Multiple Conductor Cables
Description

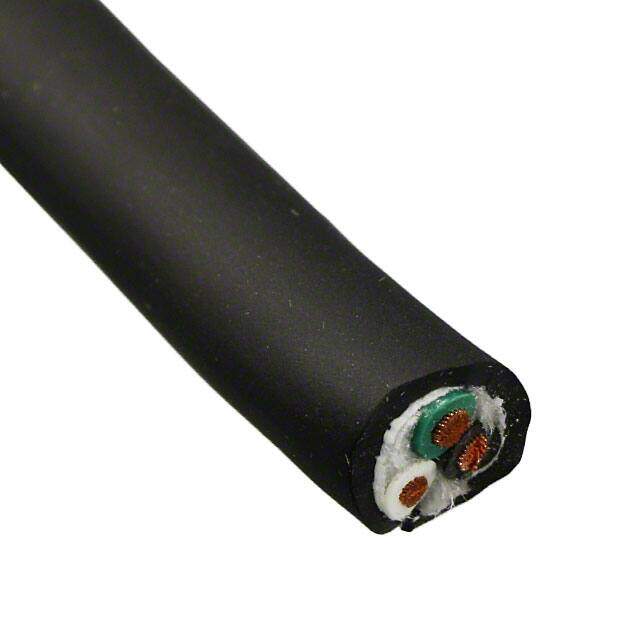

CABLE 3COND 18AWG BLACK 250'
PDF
/
Buying Options
Total Price: USD $612.58
Unit Price: USD $612.5768
≥1 USD $612.5768
≥10 USD $567.65544
≥100 USD $547.235744
≥500 USD $543.152016
≥1000 USD $537.774248
Inventory: 46
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 7 Weeks
Physical
Conductor Material Copper, Bare
Jacket (Insulation) Material Polyethylene (PE)
Technical
Operating Temperature -40°C~90°C
Packaging Spool
Published 2006
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Conductors 3
Wire Gauge 18 AWG
Voltage 300V
Connector Support Type WIRE AND CABLE
Cable Type Multi-Conductor
Jacket Color Black
Conductor Strand 16/30
Jacket (Insulation) Diameter 0.309 (7.85mm)
Conductor Insulation Rubber
Dimensions
Length 250.0' 76.2m
Jacket (Insulation) Thickness 0.0340 0.864mm
Compliance
RoHS Status ROHS3 Compliant
