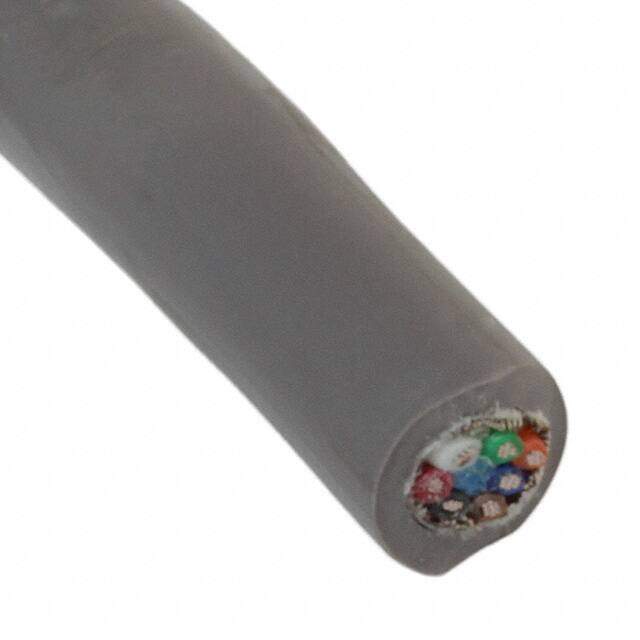

1217C SL001
RoHS
RoHS compliant
RoHS compliantPackage /
Category Cables, Wires / Multiple Conductor Cables
Description
CABLE 7COND 24AWG SHLD 1000'
PDF
/
Buying Options
Total Price: USD $910.94
Unit Price: USD $910.9408
≥1 USD $910.9408
Inventory: 102
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Insulation Material POLYVINYL CHLORIDE
Conductor Material Copper, Tinned
Jacket (Insulation) Material Poly-Vinyl Chloride (PVC)
Shield Material Aluminum
Technical
Operating Temperature -20°C~80°C
Packaging Spool
Published 2006
Feature Drain Wire
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Resistance 0.085Ohm
Shielding YES
Construction STRANDED
Number of Conductors 7
Approval Agency CE; CSA; UL
Wire Gauge 24 AWG
Voltage 300V
Connector Support Type WIRE AND CABLE
Cable Type Multi-Conductor
Jacket Color Slate
Conductor Strand 7/32
Usage Communication, Control
Jacket (Insulation) Diameter 0.201 (5.11mm)
Conductor Insulation Poly-Vinyl Chloride (PVC)
Shield Type Foil
Shield Coverage 100%
Wire and Cable Name FLEXIBLE CORD AND FIXTURE WIRE
Dimensions
Length 1000.0' 304.8m
Jacket (Insulation) Thickness 0.0320 0.813mm
Compliance
RoHS Status ROHS3 Compliant
