1178L SL005
RoHS
RoHS compliant
RoHS compliantPackage /
Category Cables, Wires / Multiple Conductor Cables
Description

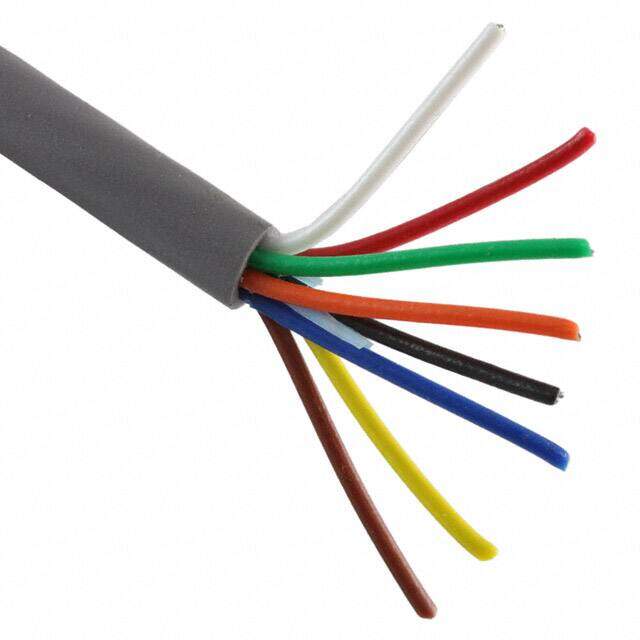

CABLE 8COND 22AWG SLATE 100'
PDF
/
Buying Options
Total Price: USD $116.91
Unit Price: USD $116.908
≥1 USD $116.908
≥10 USD $114.93093
Inventory: 27
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Jacket (Insulation) Thickness 0.0250 0.635mm
Length 100.0' 30.5m
Technical
Conductor Insulation Low Smoke Zero Halogen (LSZH)
Jacket (Insulation) Diameter 0.220 (5.59mm)
Usage Communication, Control
Conductor Strand 7/30
Jacket Color Slate
Cable Type Multi-Conductor
Connector Support Type WIRE AND CABLE
Voltage 300V
Wire Gauge 22 AWG
Number of Conductors 8
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Published 2009
Packaging Spool
Operating Temperature -20°C~75°C
Physical
Jacket (Insulation) Material Low Smoke Zero Halogen (LSZH)
Conductor Material Copper, Tinned
Supply Chain
Factory Lead Time 19 Weeks
