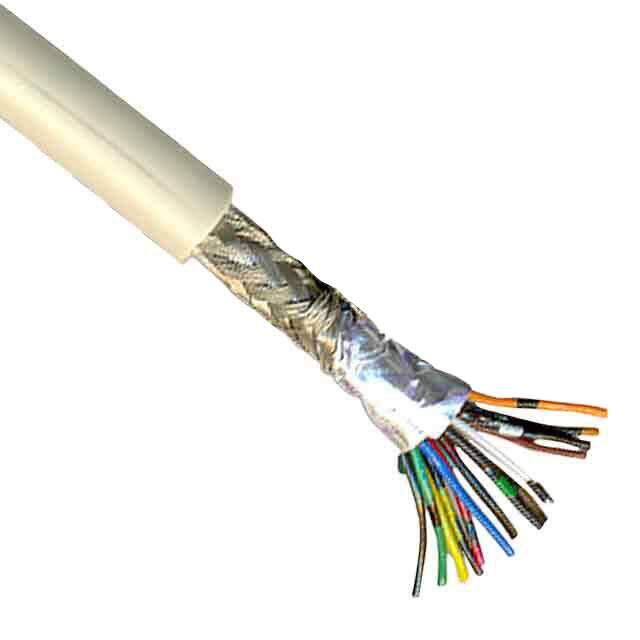

3750/38 100
RoHS
RoHS compliant
RoHS compliantPackage /
Category Cables, Wires / Multiple Conductor Cables
Description
Multi-Conductor Cable 38 26AWG 30.48m/304.8m Tinned Copper 300V Roll
PDF
/
Buying Options
Total Price: USD $70.58
Unit Price: USD $70.5848
≥1 USD $70.5848
Inventory: 18
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Dimensions
Jacket (Insulation) Thickness 0.0260 0.660mm
Length 100.0' 30.5m
Technical
Shield Coverage 100%, 90%
Shield Type Foil, Braid
Conductor Insulation Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Diameter 0.430 (10.92mm)
Usage Communication, Computer, Control
Conductor Strand 7/34
Jacket Color Gray
Cable Type Multi-Pair
Voltage 300V
Wire Gauge 26 AWG
Number of Conductors 38 (19 Pair Twisted)
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series 3750
Published 2003
Packaging Spool
Physical
Shield Material Aluminum; Copper, Tinned
Jacket (Insulation) Material Poly-Vinyl Chloride (PVC)
Conductor Material Copper, Tinned
Supply Chain
Factory Lead Time 7 Weeks
