82720002
RoHS
RoHS compliant
RoHS compliantPackage /
Category Motors, Solenoids, Driver Boards/Modules / Motors - AC, DC
Description

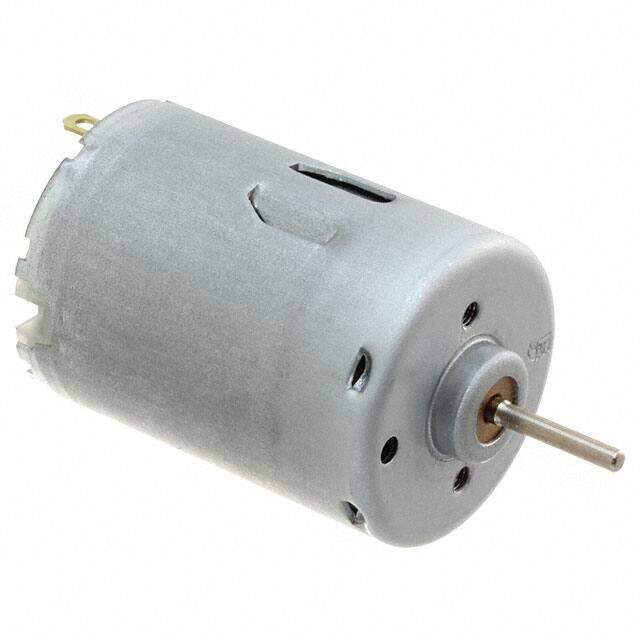

MOTOR BRUSH DC 3.2W 24V 3500RPM
PDF
/
Buying Options
Total Price: USD $19.75
Unit Price: USD $19.748894
≥1 USD $19.748894
≥10 USD $18.631041
≥100 USD $17.576452
≥500 USD $16.581555
≥1000 USD $15.642973
Inventory: 1117
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 16 Weeks
Physical
Weight 0.154lb 69.85g
Mounting Hole Spacing 0.630 (16.00mm)
Technical
Published 2012
Series 82720
Size / Dimension Round - 1.082Dia 27.50mm
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Type DC Motor
Voltage - Rated 24VDC
Power Rating 3.2W
Termination Style Solder Tab
Function Standard
Efficiency 51 %
RPM 3500 RPM
Torque - Rated (oz-in / mNm) 0.991 / 7
Motor Type Brushed
Dimensions
Diameter - Shaft 0.079 (2.00mm)
Length - Shaft and Bearing 0.591 15.00mm
Compliance
RoHS Status RoHS Compliant
