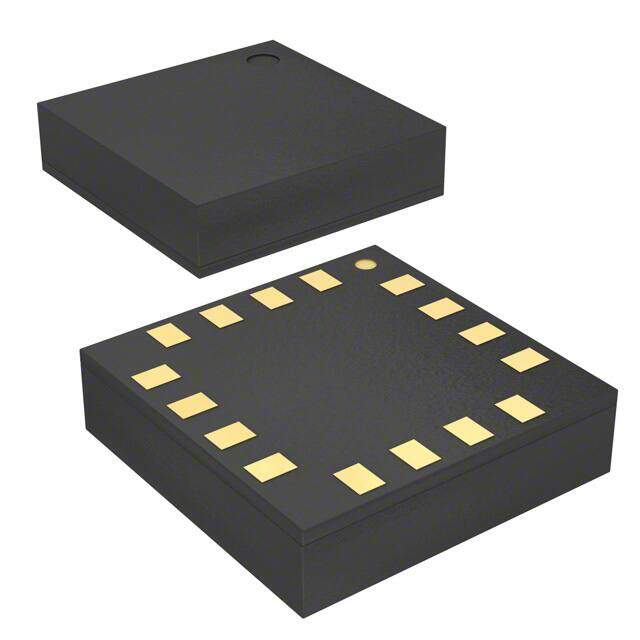

L3GD20TR
RoHS
RoHS compliant
RoHS compliantPackage 16-VFLGA
Category Sensors, Transducers / Motion Sensors - Gyroscopes
Description
IC MEMS MOTION SENSOR 16-LGA
PDF
/
Buying Options
Total Price: USD $3.22
Unit Price: USD $3.2224
≥1 USD $3.2224
≥10 USD $2.64385
≥100 USD $2.5612
≥500 USD $2.47855
≥1000 USD $2.3959
Inventory: 74083
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Dimensions
Width 4mm
Length 4mm
Height 1mm
Technical
Sensitivity (LSB/(°/s)) 8.75 ~ 70
Range °/s ±250, 500, 2000
Axis X (Pitch), Y (Roll), Z (Yaw)
Linearity 0.2 %
Bandwidth 47.5Hz ~ 380Hz
Nominal Supply Current 6.1mA
Operating Supply Current 6.1mA
Interface I2C, SPI
Supply Voltage-Min (Vsup) 2.4V
Operating Supply Voltage 3.6V
Output Type I2C, SPI
Qualification Status Not Qualified
Pin Count 16
Base Part Number L3GD20
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Terminal Pitch 0.65mm
Supply Voltage 3V
Number of Functions 1
Peak Reflow Temperature (Cel) 260
Terminal Form BUTT
Terminal Position BOTTOM
Voltage - Supply 2.4V~3.6V
Technology CMOS
HTS Code 8542.39.00.01
Type Digital
ECCN Code EAR99
Number of Terminations 16
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Obsolete
Feature Adjustable Bandwidth, Selectable Scale, Sleep Mode, Temperature Sensor
Packaging Tape & Reel (TR)
Operating Temperature -40°C~85°C TA
Physical
Number of Pins 16
Surface Mount YES
Package / Case 16-VFLGA
