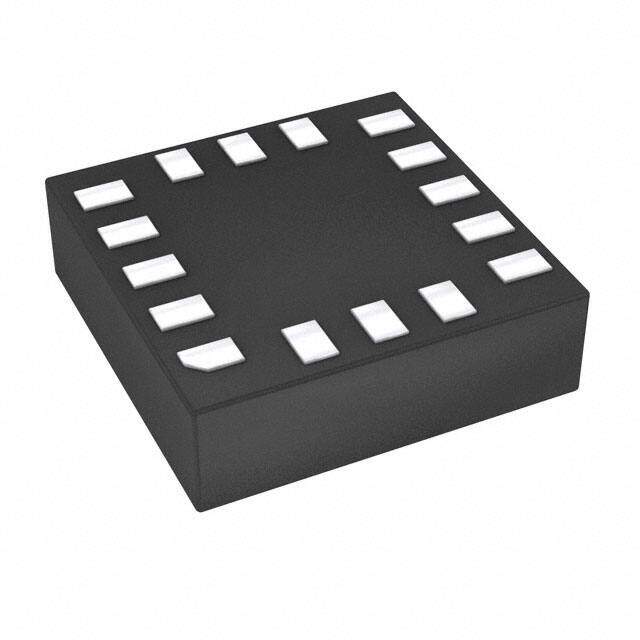

L2G2ISTR
RoHS
RoHS compliant
RoHS compliantPackage 16-VFLGA
Category Sensors, Transducers / Motion Sensors - Gyroscopes
Description
MEMS MOTION SENSOR 2AXIS 16WFLGA
PDF
/
Buying Options
Total Price: USD $1.91
Unit Price: USD $1.909574
≥1 USD $1.909574
Inventory: 1232
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 16 Weeks
Lifecycle Status ACTIVE (Last Updated: 7 months ago)
Physical
Package / Case 16-VFLGA
Surface Mount YES
Number of Pins 16
Technical
Operating Temperature -40°C~85°C TA
Packaging Cut Tape (CT)
Feature Adjustable Bandwidth, Selectable Scale, Sleep Mode, Temperature Sensor
Part Status Active
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Number of Terminations 16
ECCN Code EAR99
Type Digital
HTS Code 8542.39.00.01
Technology CMOS
Voltage - Supply 1.71V~3.6V
Terminal Position BOTTOM
Terminal Form BUTT
Peak Reflow Temperature (Cel) NOT SPECIFIED
Number of Functions 1
Supply Voltage 2.4V
Terminal Pitch 0.4mm
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Base Part Number L2G2
Output Type SPI
Supply Voltage-Max (Vsup) 3.6V
Supply Voltage-Min (Vsup) 1.71V
Operating Supply Current 3.8mA
Bandwidth 4.545kHz
Axis X (Pitch), Y (Roll)
Range °/s ±100, 200
Sensitivity (LSB/(°/s)) 131 ~ 262
Dimensions
Height Seated (Max) 0.7mm
Length 2.3mm
Compliance
RoHS Status ROHS3 Compliant
Lead Free Lead Free
