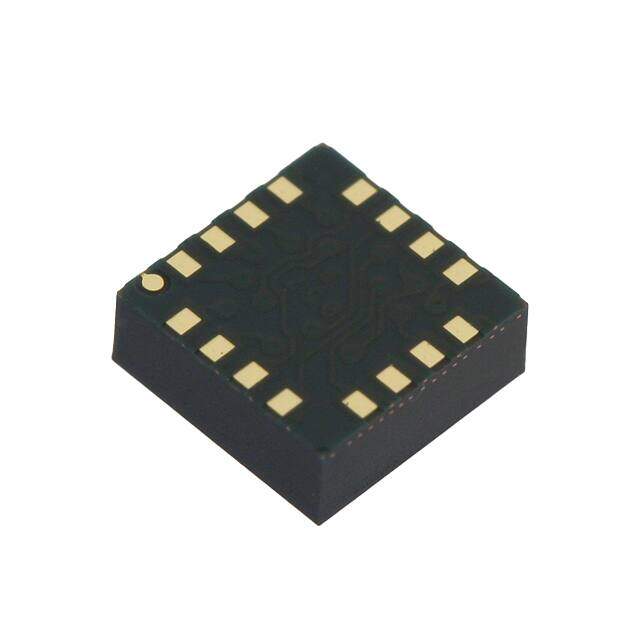

LIS344ALTR
RoHS
RoHS compliant
RoHS compliantPackage 16-LFLGA
Category Sensors, Transducers / Motion Sensors - Accelerometers
Description
ACCELEROMETER 3.5G ANALOG 16LGA
PDF
/
Buying Options
Total Price: USD $2.53
Unit Price: USD $2.5308
≥1 USD $2.5308
≥10 USD $2.0767
≥100 USD $2.0121
≥500 USD $1.94655
≥1000 USD $1.88195
Inventory: 2022
Minimum: 1
-
+
Technical Details
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 16-LFLGA
Number of Pins 16
Technical
Operating Temperature -40°C~85°C TA
Packaging Tape & Reel (TR)
JESD-609 Code e4
Feature Adjustable Bandwidth
Part Status Obsolete
Moisture Sensitivity Level (MSL) 2 (1 Year)
Number of Terminations 16
Type Analog
Terminal Finish Nickel/Gold (Ni/Au)
HTS Code 8542.39.00.01
Technology CMOS
Voltage - Supply 2.7V~3.3V
Terminal Position BOTTOM
Terminal Form BUTT
Peak Reflow Temperature (Cel) 260
Number of Functions 1
Supply Voltage 3V
Terminal Pitch 0.65mm
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Base Part Number LIS344
Pin Count 16
Qualification Status Not Qualified
Output Type Analog Voltage
Supply Voltage-Max (Vsup) 3.3V
Power Supplies 3V
Supply Voltage-Min (Vsup) 2.7V
Nominal Supply Current 690μA
Bandwidth 2kHz
Axis X, Y, Z
Acceleration Range ±3.5g
Sensitivity (mV/G) 300
Dimensions
Height Seated (Max) 1.6mm
Length 4mm
Compliance
RoHS Status ROHS3 Compliant
