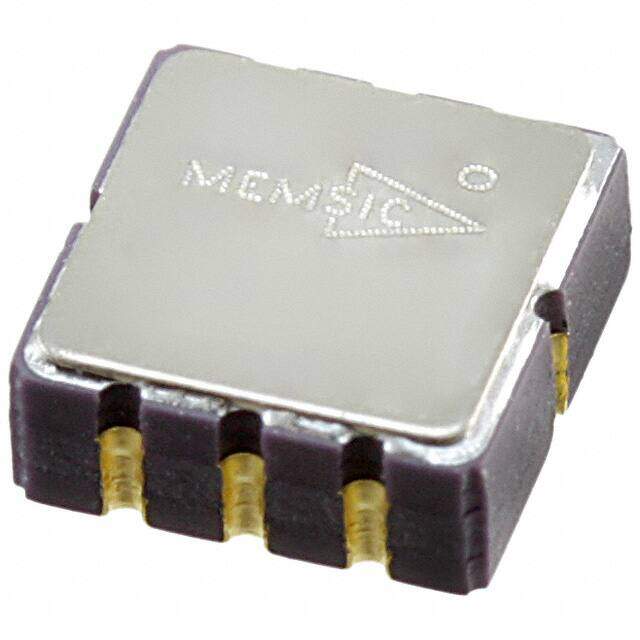

MXR2999EL
RoHS
RoHS compliant
RoHS compliantPackage 8-TQFN
Category Sensors, Transducers / Motion Sensors - Accelerometers
Description
ACCELEROMETER 0.5G ANALOG 8QFN
PDF
/
Buying Options
Total Price: USD $16.13
Unit Price: USD $16.1304
≥1 USD $16.1304
≥10 USD $12.76704
≥100 USD $12.09472
≥500 USD $10.414976
≥1000 USD $9.743026
Inventory: 1174
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 6 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 8-TQFN
Number of Pins 8
Technical
Operating Temperature -40°C~105°C TA
Packaging Cut Tape (CT)
Published 2002
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 8
Type Analog
Technology CMOS
Voltage - Supply 3V~5.25V
Terminal Position QUAD
Terminal Form NO LEAD
Number of Functions 1
Supply Voltage 5V
Terminal Pitch 1.27mm
Output Type Analog Voltage
Supply Voltage-Max (Vsup) 5.25V
Supply Voltage-Min (Vsup) 3V
Bandwidth 17Hz
Evaluation Kit Yes
Axis X, Y
Acceleration Range ±0.5g
Sensitivity (mV/G) 1000
Dimensions
Height Seated (Max) 2.23mm
Length 5mm
Compliance
RoHS Status RoHS Compliant
