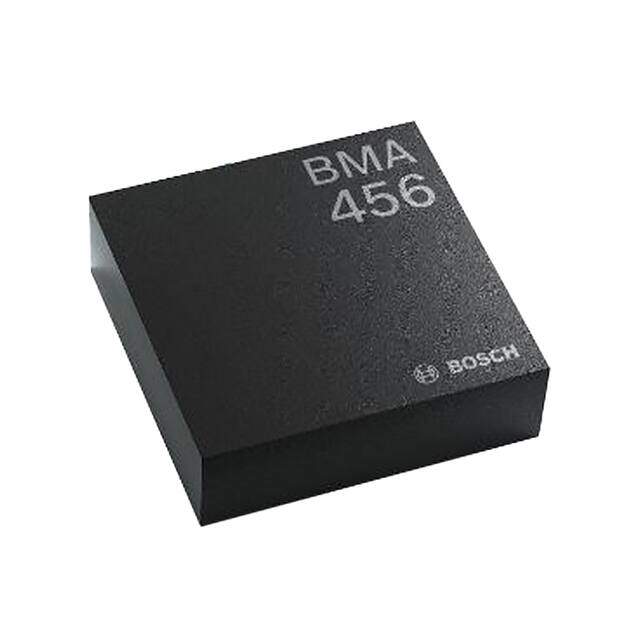

BMA456
RoHS
RoHS compliant
RoHS compliantPackage 12-VFLGA
Category Sensors, Transducers / Motion Sensors - Accelerometers
Description
BMA456 Series 3.6 V 1.6 kHz Digital Triaxial Acceleration Sensor - LGA-12
PDF
/
Buying Options
Total Price: USD $2.81
Unit Price: USD $2.809
≥1 USD $2.809
≥10 USD $2.65
≥100 USD $2.5
Inventory: 2358
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 14 Weeks
Physical
Mounting Type Surface Mount
Package / Case 12-VFLGA
Surface Mount YES
Technical
Operating Temperature -40°C~85°C
Packaging Tape & Reel (TR)
Feature Adjustable Bandwidth, Selectable Low Pass Filter, Temperature Sensor
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 12
Type Digital
Voltage - Supply 1.62V~3.6V
Terminal Position BOTTOM
Terminal Form BUTT
Number of Functions 1
Supply Voltage 1.8V
Terminal Pitch 0.5mm
Reach Compliance Code unknown
JESD-30 Code S-PBGA-B12
Output Type I2C, SPI
Supply Voltage-Max (Vsup) 3.6V
Supply Voltage-Min (Vsup) 1.62V
Bandwidth 1.5kHz ~ 1.6kHz
Axis X, Y, Z
Acceleration Range ±2g, 4g, 8g, 16g
Dimensions
Height Seated (Max) 0.7mm
Length 2mm
Compliance
RoHS Status ROHS3 Compliant
