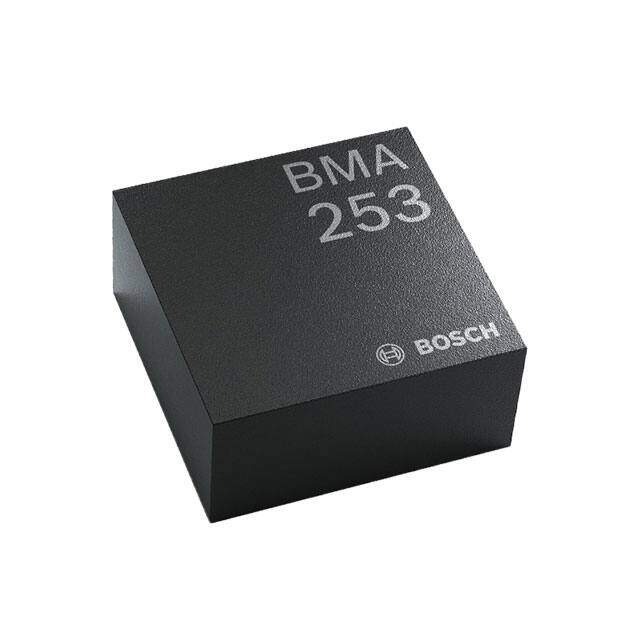

BMA253
RoHS
RoHS compliant
RoHS compliantPackage 12-VFLGA
Category Sensors, Transducers / Motion Sensors - Accelerometers
Description
ACCELERATION DIGITAL, TRIAXIAL S
PDF
/
Buying Options
Total Price: USD $0.4
Unit Price: USD $0.4028
≥1 USD $0.4028
≥10 USD $0.3306
≥100 USD $0.32015
≥500 USD $0.31065
≥1000 USD $0.3002
Inventory: 272406
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Length 2mm
Height Seated (Max) 1mm
Technical
Sensitivity (LSB/g) 1024 (±2g) ~ 128 (±16g)
Acceleration Range ±2g, 4g, 8g, 16g
Axis X, Y, Z
Bandwidth 8Hz ~ 1kHz
Supply Voltage-Min (Vsup) 1.62V
Supply Voltage-Max (Vsup) 3.6V
Output Type I2C, SPI
JESD-30 Code S-XBGA-B12
Time@Peak Reflow Temperature-Max (s) 40
Terminal Pitch 0.5mm
Supply Voltage 2.4V
Number of Functions 1
Peak Reflow Temperature (Cel) 260
Terminal Form BUTT
Terminal Position BOTTOM
Voltage - Supply 1.2V~3.6V
Type Digital
Number of Terminations 12
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Adjustable Bandwidth, Selectable Low Pass Filter, Selectable Scale, Temperature Sensor
Published 2017
Packaging Tape & Reel (TR)
Operating Temperature -40°C~85°C
Physical
Surface Mount YES
Package / Case 12-VFLGA
Mounting Type Surface Mount
Supply Chain
Factory Lead Time 14 Weeks
