615008148521
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Modular Connectors - Jacks
Description

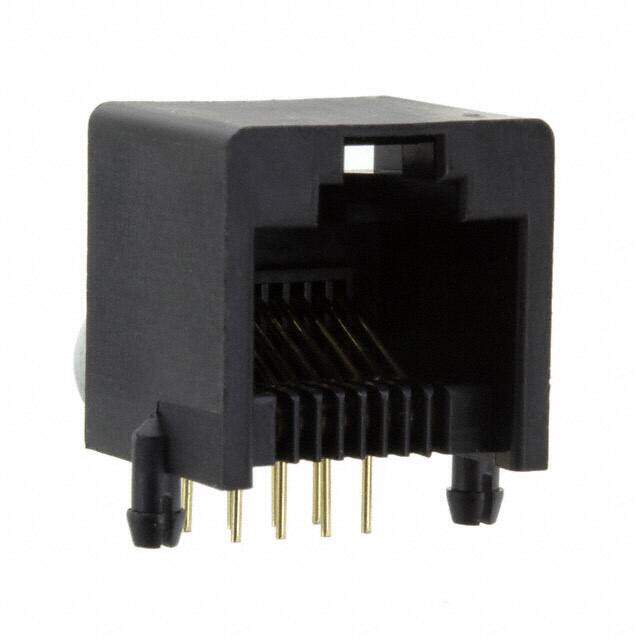

CONN MOD JACK 8P8C R/A UNSHLD
PDF
/
Buying Options
Total Price: USD $1.41
Unit Price: USD $1.405027
≥1 USD $1.405027
≥10 USD $1.325502
≥100 USD $1.250473
≥500 USD $1.179691
≥1000 USD $1.112907
Inventory: 1163
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 63 Weeks
Physical
Contact Material Copper Alloy
Contact Plating Gold
Mount Through Hole
Mounting Type Through Hole
Housing Material Polybutylene Terephthalate (PBT)
Technical
Operating Temperature -40°C~85°C
Packaging Tray
Series WR-MJ
Feature Board Lock
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Jack
Max Operating Temperature 85°C
Min Operating Temperature -40°C
Number of Rows 1
Orientation 90° Angle (Right)
Shielding Unshielded
Current Rating 1.5A
Contact Finish Gold
Housing Color Black
Operating Supply Voltage 120V
Contact Resistance 20mOhm
Insulation Resistance 500MOhm
Number of Ports 1
Direction Up
Number of Positions/Contacts 8p8c (RJ45, Ethernet)
LED Color Does Not Contain LED
Tab Direction Up
Compliance
RoHS Status ROHS3 Compliant
