615008140621
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Modular Connectors - Jacks
Description

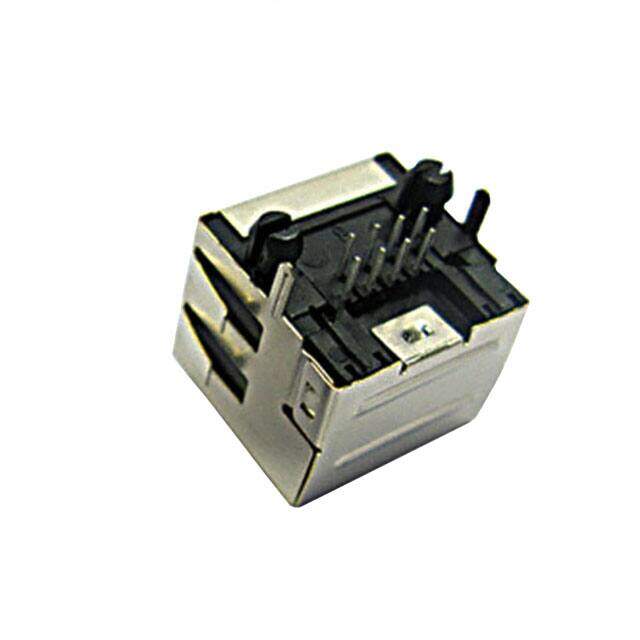

CONN MOD JACK 8P8C R/A SHIELDED
PDF
/
Buying Options
Total Price: USD $2.21
Unit Price: USD $2.211253
≥1 USD $2.211253
≥10 USD $2.086097
≥100 USD $1.968011
≥500 USD $1.856609
≥1000 USD $1.751526
Inventory: 1163
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 49 Weeks
Physical
Contact Material Copper Alloy
Contact Plating Gold
Mount Through Hole
Mounting Type Through Hole
Housing Material Polybutylene Terephthalate (PBT)
Technical
Operating Temperature -40°C~85°C
Packaging Tray
Series WR-MJ
Feature Board Lock
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Jack
Number of Positions 8
Max Operating Temperature 85°C
Min Operating Temperature -40°C
Color Black
Number of Rows 1
Gender Receptacle
Orientation 90° Angle (Right)
Shielding Shielded, EMI Finger
Current Rating 1.5A
Contact Finish Gold
Voltage - Rated AC 120V
Number of Contacts 8
Operating Supply Voltage 120V
Contact Resistance 20mOhm
Insulation Resistance 500MOhm
Number of Ports 1
Direction Up
Number of Positions/Contacts 8p8c (RJ45, Ethernet)
LED Color Does Not Contain LED
Tab Direction Up
Dimensions
Height 16.93mm
Length 16.5mm
Width 15.75mm
Compliance
REACH SVHC Unknown
RoHS Status ROHS3 Compliant
Flammability Rating UL94 V-0
Ratings Cat5
