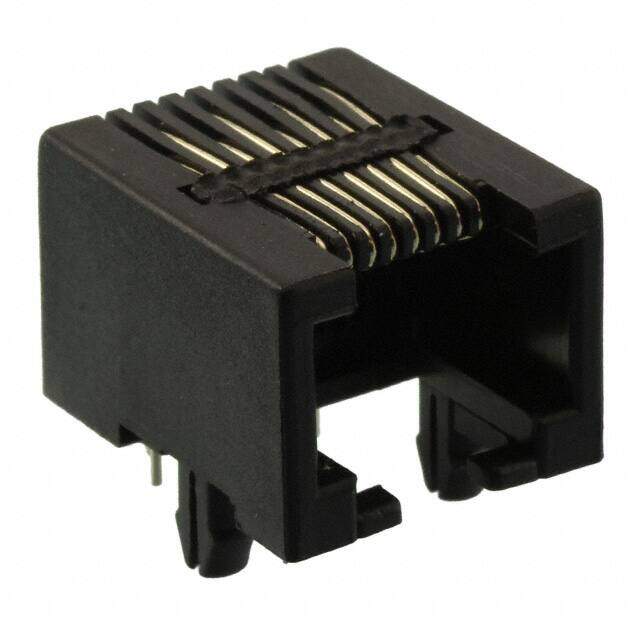

615008137121

Würth Elektronik
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Modular Connectors - Jacks
Description CONN MOD JACK 8P8C R/A UNSHLD
PDF
/
Buying Options
Total Price: USD $1.23
Unit Price: USD $1.225316
≥1 USD $1.225316
≥10 USD $1.15596
≥100 USD $1.090529
≥500 USD $1.028802
≥1000 USD $0.970567
Inventory: 1251
Minimum: 1
-
+

Technical Details

Compliance

Ratings Cat5
Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
REACH SVHC Unknown

Dimensions

Width 18mm
Length 15.15mm
Height 14.95mm

Technical

Tab Direction Down
LED Color Does Not Contain LED
Number of Positions/Contacts 8p8c (RJ45, Ethernet)
Direction Down
Number of Ports 1
Insulation Resistance 500MOhm
Contact Resistance 20mOhm
Operating Supply Voltage 120V
Number of Contacts 8
Voltage - Rated AC 120V
Contact Finish Gold
Current Rating 1.5A
Depth 18mm
Shielding Unshielded
Orientation 90° Angle (Right)
Voltage - Rated DC 120V
Gender Receptacle
Number of Rows 1
Color Black
Min Operating Temperature -40°C
Max Operating Temperature 85°C
Number of Positions 8
Connector Type Jack
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Board Lock
Series WR-MJ
Packaging Tray
Operating Temperature -40°C~85°C

Physical

Housing Material Polybutylene Terephthalate (PBT)
Mounting Type Through Hole
Mount PCB, Through Hole
Contact Plating Gold
Contact Material Copper Alloy

Supply Chain

Factory Lead Time 12 Weeks
