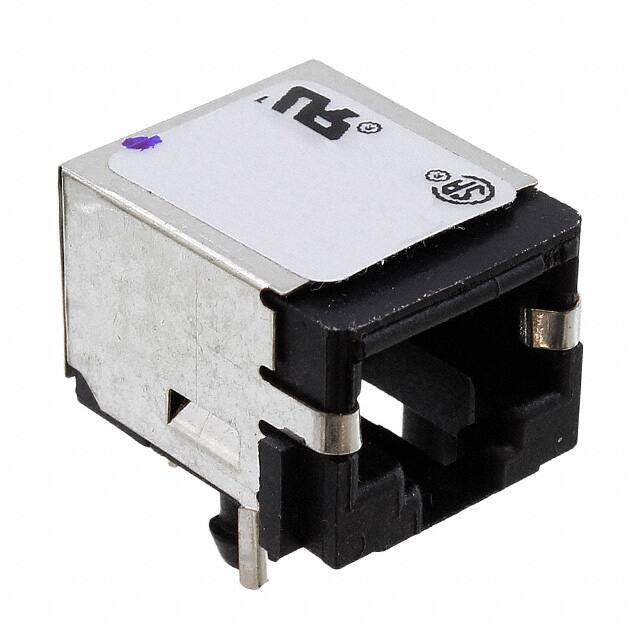

RJ45-8Z4
RoHS
/
Package /
Category Connectors, Interconnects / Modular Connectors - Jacks
Description
Modular Connectors / Ethernet Connectors 8 TRM NO FLTR LOWPRO BRD GRND&CBL GRND
PDF
/
Inventory: 4158
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 9 Weeks
Physical
Contact Material Phosphor Bronze
Contact Plating Gold
Mount Through Hole
Mounting Type Through Hole
Housing Material Polyester, Glass Filled
Technical
Packaging Bulk
Published 2009
Series Z
Feature Board Lock, Panel Stops
Part Status Obsolete
Moisture Sensitivity Level (MSL) Not Applicable
Termination Solder
Connector Type Jack
Number of Positions 8
Number of Rows 1
Gender Female
Pitch 2.54mm
Orientation 90° Angle (Right)
Shielding Shielded
Depth 18.8mm
Number of Positions Loaded 8
Current Rating 2.3A
Contact Finish Gold
Approval Agency CSA, UL
Number of Contacts 8
Housing Color Black
Contact Resistance 30mOhm
ELV Compliant
Number of Ports 1
Number of Positions/Contacts 8p8c (RJ45, Ethernet)
LED Color Does Not Contain LED
Tab Direction Down
Dimensions
Length 17.78mm
Contact Finish Thickness 50.0μin 1.27μm
Compliance
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
