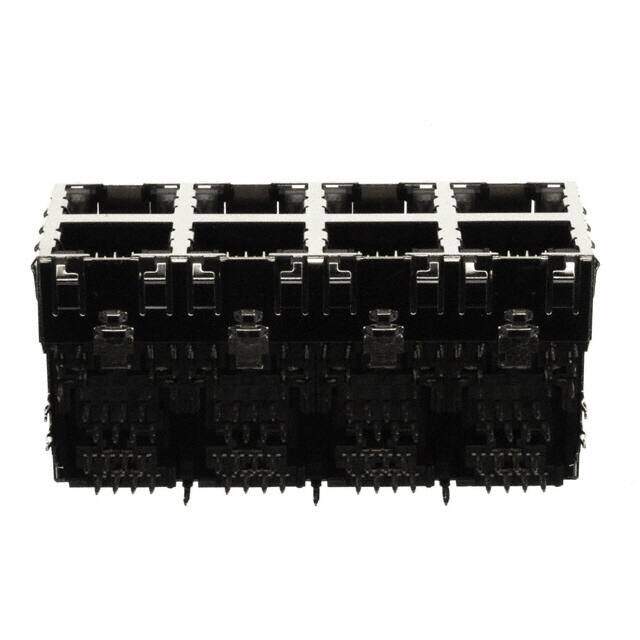

6368062-4
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Modular Connectors - Jacks
Description
CONN MOD JACK 8P8C R/A SHIELDED
PDF
/
Buying Options
Total Price: USD $49.17
Unit Price: USD $49.1656
≥1 USD $49.1656
≥10 USD $40.57944
≥100 USD $37.7179
≥500 USD $35.637034
≥1000 USD $34.856615
Inventory: 524
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 5 Weeks
Lifecycle Status ACTIVE (Last Updated: 5 months ago)
Physical
Contact Material Phosphor Bronze
Mounting Type Board Edge; Panel Mount; Through Hole
Shell Material COPPER ALLOY
Housing Material Polybutylene Terephthalate (PBT), Polyester
Mounting Option 1 LOCKING
PCB Mounting Orientation Right Angle
Technical
Operating Temperature -40°C~85°C
Packaging Tray
Published 2007
JESD-609 Code e3
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Press-Fit
ECCN Code EAR99
Connector Type Jack
Color Black
Number of Rows 2
Subcategory Telecom and Datacom Connectors
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Mixed Contacts NO
Option GENERAL PURPOSE
Pitch 2.03mm
Orientation 90° Angle (Right)
Shielding Shielded, EMI Finger
Depth 31.06mm
Current Rating 200mA
Shell Finish TIN
Reference Standard UL, CSA
Contact Finish Gold
Reliability COMMERCIAL
Number of Contacts 64
PCB Contact Pattern STAGGERED
Body Breadth 0.905 inch
Contact Gender FEMALE
UL Flammability Code 94V-0
Empty Shell NO
Rated Current (Signal) 1.5A
Contact Style TELCOM, MODULAR
Insulation Resistance 500000000Ohm
Max Voltage Rating (AC) 150V
Dielectric Withstanding Voltage 1000VAC V
Number of Ports 8
Durability 750 Cycles
Circuit Application Signal
Direction Up and Down
Number of Positions/Contacts 8p8c (RJ45, Ethernet)
LED Color Green, Yellow - Green, Yellow
Tab Direction Up and Down
Keyed No
Dimensions
Height 22.99mm
Length 59.82mm
Contact Finish Thickness 50.0μin 1.27μm
Plating Thickness 50μin
Contact Finish Thickness - Mating 1.27μm
Length - Tail 4.35mm
PCB Thickness 1.57mm
Compliance
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
Ratings Cat5
