5569257-1
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Modular Connectors - Jacks
Description

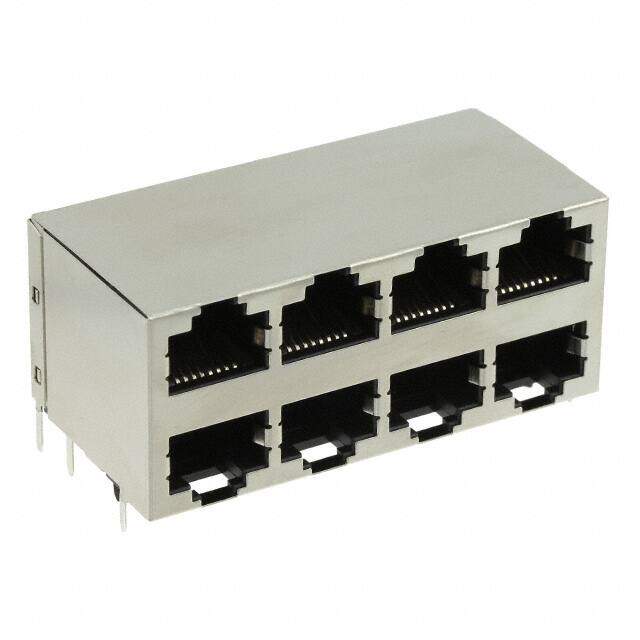

Conn RJ-45 F 64 POS 2.54mm Solder RA Thru-Hole 64 Terminal 8 Port Cat 5
PDF
/
Buying Options
Total Price: USD $18.05
Unit Price: USD $18.05247
≥1 USD $18.05247
≥10 USD $18.05247
≥100 USD $18.05247
Inventory: 8
Minimum: 1
-
+
Technical Details
Compliance
Ratings Cat5
Lead Free Lead Free
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Dimensions
PCB Thickness 1.57mm
Length - Tail 3.56mm
Contact Finish Thickness - Mating 1.27μm
Plating Thickness 50μin
Contact Finish Thickness 50.0μin 1.27μm
Width 59.18mm
Length 59.18mm
Height 25.27mm
Technical
Keyed No
Tab Direction Up and Down
LED Color Does Not Contain LED
Number of Positions/Contacts 8p8c (RJ45, Ethernet)
Direction Up and Down
Circuit Application Signal
Durability 750 Cycles
Number of Ports 8
Dielectric Withstanding Voltage 1000VAC V
Max Voltage Rating (AC) 150V
ELV Compliant
Insulation Resistance 500000000Ohm
Contact Resistance 30mOhm
Contact Style TELCOM, MODULAR
Rated Current (Signal) 1.5A
Empty Shell NO
UL Flammability Code 94V-0
Body Breadth 0.995 inch
PCB Contact Pattern STAGGERED
Number of Contacts 64
Approval Agency CSA, UL
Reliability COMMERCIAL
Contact Finish Gold
Reference Standard UL, CSA
Shell Finish NICKEL
Current Rating 200mA
Depth 28.7mm
Shielding Shielded
Orientation 90° Angle (Right)
Pitch 2.54mm
Option GENERAL PURPOSE
Mixed Contacts NO
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Subcategory Telecom and Datacom Connectors
Gender Female
Number of Rows 2
Color Black
Connector Type Jack
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Board Guide
JESD-609 Code e3
Published 2009
Packaging Tray
Operating Temperature -40°C~85°C
Physical
PCB Mounting Orientation Right Angle
Mounting Option 1 LOCKING
Housing Material Polycyclohexylenedimethylene Terephthalate (PCT), Polyester
Shell Material COPPER ALLOY
Mounting Type Through Hole
Contact Material Phosphor Bronze
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 6 days ago)
Factory Lead Time 10 Weeks
Alternative Model
