5406533-1
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Modular Connectors - Jacks
Description

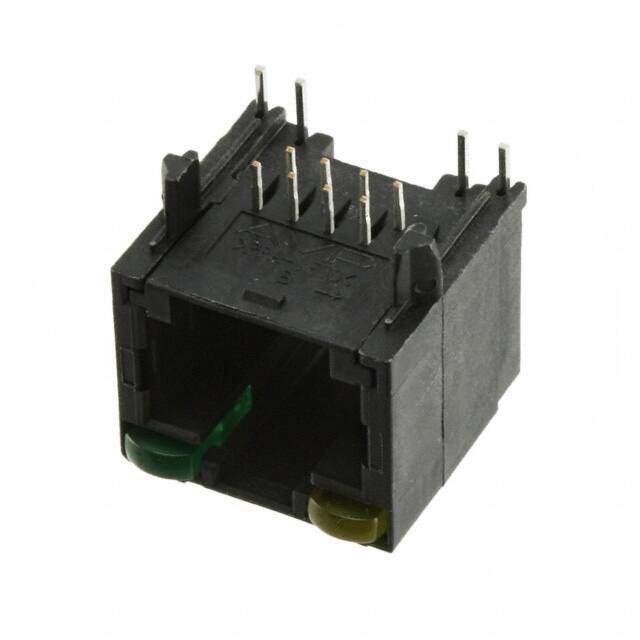

CONN MOD JACK 8P8C R/A UNSHLD
PDF
/
Buying Options
Total Price: USD $2.4
Unit Price: USD $2.4024
≥1 USD $2.4024
≥10 USD $2.13752
≥100 USD $2.127136
≥500 USD $1.931714
≥1000 USD $1.920864
≥3000 USD $1.562739
Inventory: 1167
Minimum: 1
-
+
Technical Details
Compliance
Ratings Cat5
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
REACH SVHC Unknown
Dimensions
PCB Thickness 1.57mm
Length - Tail 2.54mm
Contact Finish Thickness - Mating 1.27μm
Plating Thickness 50μin
Contact Finish Thickness 50.0μin 1.27μm
Width 16.51mm
Length 16.51mm
Height 12.83mm
Technical
Keyed No
Tab Direction Up
LED Color Yellow - Green
Number of Positions/Contacts 8p8c (RJ45, Ethernet)
Circuit Application Signal
Durability 750 Cycles
Number of Ports 1
Element Configuration Single
Max Voltage Rating (AC) 150V
Insulation Resistance 500000000Ohm
Contact Style TELCOM, MODULAR
Empty Shell NO
UL Flammability Code 94V-0
Body Breadth 0.535 inch
PCB Contact Pattern STAGGERED
Reliability COMMERCIAL
Contact Finish Gold
Reference Standard UL, CSA
Current Rating 1.5A
Depth 15.24mm
Shielding Unshielded
Orientation 90° Angle (Right)
Total Number of Contacts 8
Pitch 2.04mm
Option GENERAL PURPOSE
Mixed Contacts NO
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Subcategory Telecom and Datacom Connectors
Gender Female
Color Black
Number of Positions 8
Connector Type Jack
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Board Guide
JESD-609 Code e3
Published 2008
Packaging Tray
Operating Temperature -40°C~85°C
Physical
PCB Mounting Orientation Right Angle
Mounting Option 1 LOCKING
Housing Material Thermoplastic
Shell Material POLYETHYLENE
Mounting Type Through Hole
Contact Material Phosphor Bronze
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 4 days ago)
Factory Lead Time 25 Weeks
Alternative Model
