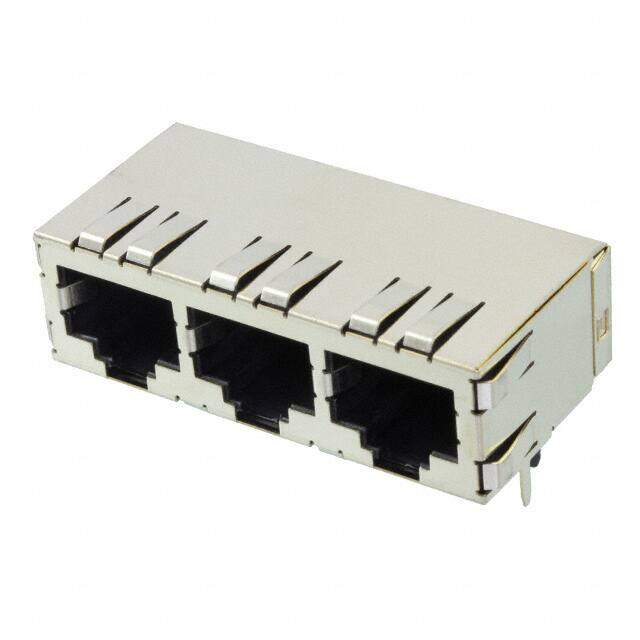

1761825-1
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Modular Connectors - Jacks
Description
CONN MOD JACK 8P8C R/A SHLD
PDF
/
Buying Options
Total Price: USD $17.73
Unit Price: USD $17.732
≥1 USD $17.732
≥10 USD $17.35888
≥100 USD $16.89688
≥500 USD $16.06587
≥1000 USD $14.49617
≥3000 USD $14.40384
Inventory: 2091
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 20 Weeks
Lifecycle Status ACTIVE (Last Updated: 1 week ago)
Physical
Contact Material Phosphor Bronze
Mount PCB
Mounting Type Through Hole
Shell Material COPPER ALLOY
Housing Material Polyamide (PA), Nylon
Technical
Packaging Bulk
Published 2016
Feature Board Guide
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Jack
Number of Rows 1
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Mixed Contacts NO
Option GENERAL PURPOSE
Total Number of Contacts 24
Orientation 90° Angle (Right)
Shielding Shielded, EMI Finger
Number of Positions Loaded 8
Current Rating 200mA
Shell Finish NICKEL
Contact Finish Gold
Contact Gender FEMALE
UL Flammability Code 94V-0
Housing Color Black
Empty Shell NO
Number of Ports 3
Circuit Application Signal
Number of Positions/Contacts 8p8c (RJ45, Ethernet)
LED Color Does Not Contain LED
Tab Direction Down
Dimensions
Height 13.63mm
Contact Finish Thickness 50.0μin 1.27μm
Contact Finish Thickness - Mating 1.27μm
Length - Tail 3.56mm
Compliance
RoHS Status RoHS Compliant
