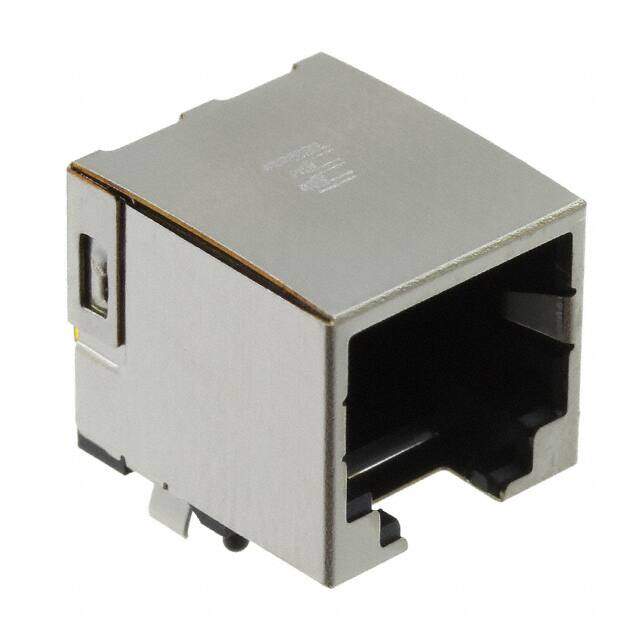

1734723-1
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Modular Connectors - Jacks
Description
CONN MOD JACK 6P6C R/A SHIELDED
PDF
/
Buying Options
Total Price: USD $1.78
Unit Price: USD $1.7776
≥1 USD $1.7776
≥10 USD $1.58312
≥100 USD $1.574848
≥500 USD $1.43015
≥1000 USD $1.422133
≥3000 USD $1.414556
Inventory: 1083
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 11 Weeks
Lifecycle Status ACTIVE (Last Updated: 4 days ago)
Physical
Contact Material Phosphor Bronze
Contact Plating Gold
Mounting Type Through Hole
Housing Material Polyamide (PA46), Nylon 4/6, Glass Filled
PCB Mounting Orientation Right Angle
Package Quantity 120
Technical
Packaging Bulk
Published 2013
Feature Board Lock
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Jack
Number of Positions 6
Color Black
Number of Rows 1
Gender Male
Pitch 2.04mm
Orientation 90° Angle (Right)
Shielding Shielded
Number of Positions Loaded 6
Contact Finish Gold
Number of Contacts 6
Housing Color Black
ELV Compliant
Max Current Rating 1A
Plating Gold
Element Configuration Single
Number of Ports 1
Circuit Application Signal
Direction Down
Number of Positions/Contacts 6p6c (RJ11, RJ12, RJ14, RJ25)
LED Color Does Not Contain LED
Tab Direction Down
Keyed No
Dimensions
Height 11.05mm
Contact Finish Thickness 6.00μin 0.152μm
Length - Tail 2.4mm
PCB Thickness 1.6mm
Compliance
Radiation Hardening No
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
Ratings Cat3
