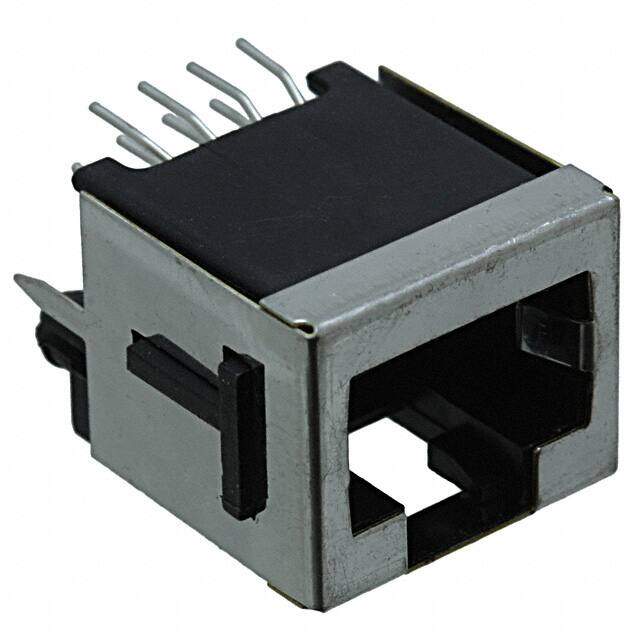

100616-2
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Modular Connectors - Jacks
Description
Modular Connectors / Ethernet Connectors JACK 8P VERT T/H BLK
PDF
/
Buying Options
Total Price: USD $1.39
Unit Price: USD $1.3904
≥1 USD $1.3904
≥10 USD $1.27072
≥100 USD $1.13315
≥500 USD $0.907773
≥1000 USD $0.813868
≥3000 USD $0.774822
Inventory: 1169
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 5 Weeks
Lifecycle Status ACTIVE (Last Updated: 3 days ago)
Physical
Contact Material Phosphor Bronze
Mounting Type Through Hole
Shell Material PBT-POLYESTER
Housing Material Polybutylene Terephthalate (PBT)
Technical
Operating Temperature -40°C~70°C
Packaging Bulk
Published 2005
Feature Board Lock, Panel Stops
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Jack
Color Black
Gender Male
Additional Feature PANEL ATTACHMENT, SHEILDED, LATCHED, TOP ENTRY
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Mixed Contacts NO
Option GENERAL PURPOSE
Pitch 2.54mm
Total Number of Contacts 8
Orientation Vertical
Shielding Shielded
Depth 13.4mm
Number of Positions Loaded 8
Current Rating 1.5A
Contact Finish Gold
UL Flammability Code 94V-0
Empty Shell NO
ELV Compliant
Element Configuration Single
Number of Ports 1
Circuit Application Signal
Direction User Selectable
Number of Positions/Contacts 8p8c (RJ45, Ethernet)
LED Color Does Not Contain LED
Tab Direction User Selectable
Keyed No
Dimensions
Height 19.9mm
Length 18mm
Contact Finish Thickness 47.2μin 1.20μm
Contact Finish Thickness - Mating 1.2μm
Length - Tail 3.0988mm
PCB Thickness 1.6mm
Compliance
REACH SVHC No SVHC
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
Ratings Cat3
