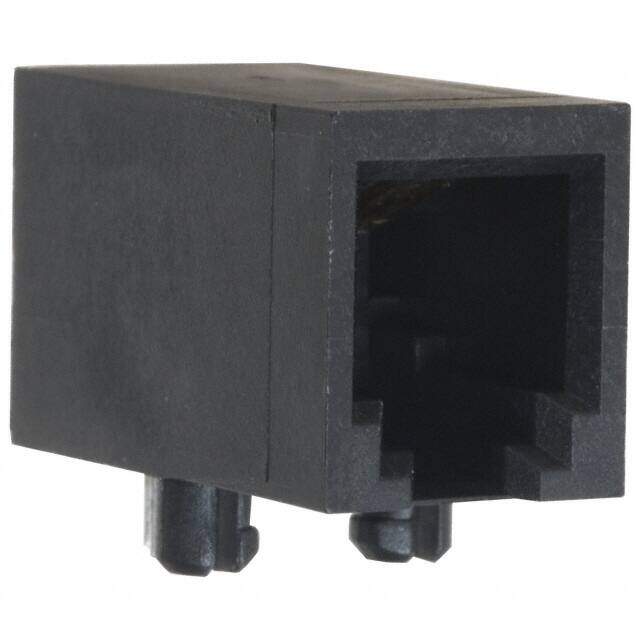

SS-6444-NF
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Modular Connectors - Jacks
Description
CONN MOD JACK 4P4C R/A UNSHLD
PDF
/
Buying Options
Total Price: USD $0.99
Unit Price: USD $0.9856
≥1 USD $0.9856
≥10 USD $0.82984
≥100 USD $0.795872
≥500 USD $0.7788
≥1000 USD $0.744973
≥3000 USD $0.677274
Inventory: 1257
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 18 Weeks
Physical
Contact Material Copper Alloy
Contact Plating Gold
Mount Through Hole
Mounting Type Through Hole
Material Polyester
Housing Material Thermoplastic
Technical
Operating Temperature -40°C~85°C
Packaging Tray
Published 1998
Series 64
Feature Board Lock
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Termination Solder
Connector Type Jack
Number of Positions 4
Max Operating Temperature 85°C
Min Operating Temperature -40°C
Color Black
Number of Rows 1
Gender Receptacle
Voltage - Rated 150V
Pitch 2.54mm
Orientation 90° Angle (Right)
Shielding Unshielded
Depth 20.7mm
Number of Positions Loaded 4
Current Rating 1.5A
Contact Finish Gold
Voltage - Rated AC 30V
Approval Agency CSA, UL
Number of Contacts 4
Contact Resistance 10mOhm
Insulation Resistance 500MOhm
Number of Ports 1
Direction Down
Number of Positions/Contacts 4p4c (RJ9, RJ10, RJ22)
LED Color Does Not Contain LED
Tab Direction Down
Dimensions
Height 12.83mm
Length 11.3mm
Width 11.3mm
Contact Finish Thickness 30.0μin 0.76μm
Compliance
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Flammability Rating UL94 V-0
Lead Free Contains Lead
