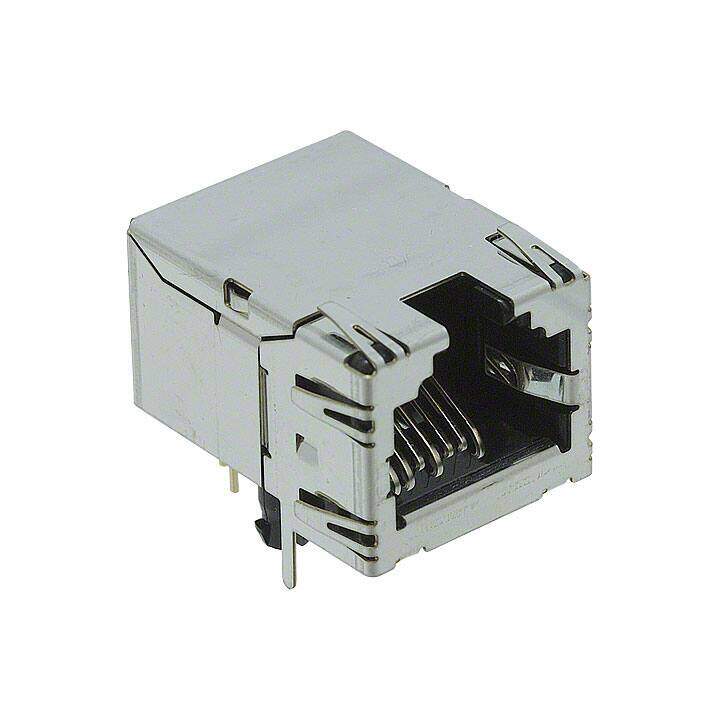

1653087 image
Favorite
1653087 image
Favorite
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Modular Connectors - Jacks
Description Modular Connectors / Ethernet Connectors VS-08-BU-RJ45-6/LH-1 CAT6 RJ45 FEM/RA PIN
PDF
/
Buying Options
Total Price: USD $9.23
Unit Price: USD $9.2312
≥1 USD $9.2312
≥10 USD $8.62576
≥100 USD $7.93496
≥500 USD $7.331104
≥1000 USD $6.986144
≥3000 USD $6.947811
Inventory: 22
Minimum: 1
-
+

Technical Details

Compliance

Ratings Cat6
Lead Free Lead Free
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant

Dimensions

Length 16mm
Height 13.8mm

Technical

Tab Direction Up
LED Color Does Not Contain LED
Number of Positions/Contacts 8p8c (RJ45, Ethernet)
Number of Ports 1
Body/Shell Style SOCKET
Empty Shell NO
UL Flammability Code 94V-0
Contact Finish Gold
Current Rating 1A
Depth 21mm
Ingress Protection IP20
Shielding Shielded, EMI Finger
Orientation 90° Angle (Right)
Total Number of Contacts 8
Option GENERAL PURPOSE
Mixed Contacts NO
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Gender Female
Number of Positions 8
Connector Type Jack
ECCN Code EAR99
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Board Lock
JESD-609 Code e4
Series PLUSCON VS
Published 2012
Packaging Bulk
Operating Temperature -25°C~80°C

Physical

Weight 6.890011g
Housing Material Polybutylene Terephthalate (PBT)
Mounting Type Through Hole
Mount Through Hole
Contact Material Copper Alloy

Supply Chain

Factory Lead Time 4 Weeks
