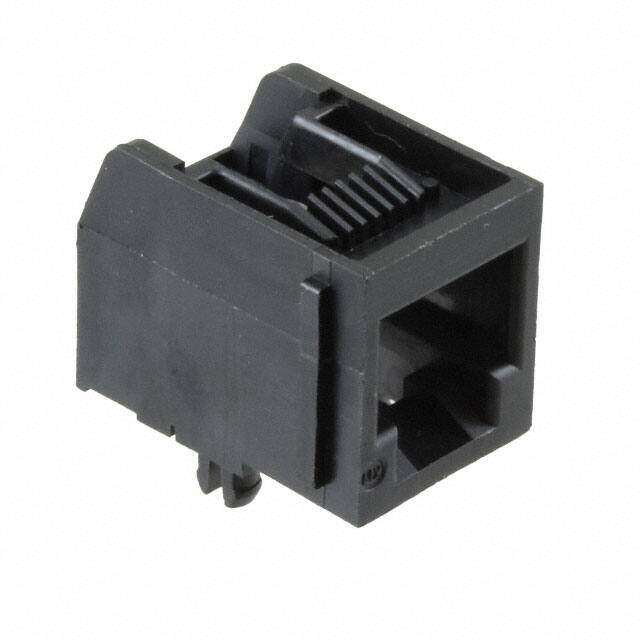

0950097641
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Modular Connectors - Jacks
Description
Conn RJ-11 F 6 POS 2.54mm Solder RA Thru-Hole 4 Terminal 1 Port Tray Cat 3
PDF
/
Buying Options
Total Price: USD $0.58
Unit Price: USD $0.5808
≥1 USD $0.5808
≥10 USD $0.48136
≥100 USD $0.400954
≥500 USD $0.352986
Inventory: 2884
Minimum: 1
-
+
Technical Details
Compliance
Ratings Cat3
RoHS Status ROHS3 Compliant
Dimensions
Contact Finish Thickness 50.0μin 1.27μm
Technical
Tab Direction Down
LED Color Does Not Contain LED
Number of Positions/Contacts 6p4c (RJ11, RJ14)
Number of Ports 1
Empty Shell NO
UL Flammability Code 94V-0
Contact Gender FEMALE
Contact Finish Gold
Shielding Unshielded
Orientation 90° Angle (Right)
Total Number of Contacts 4
Option GENERAL PURPOSE
Mixed Contacts NO
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Connector Type Jack
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Board Lock, Panel Stops
Series 95009
Packaging Tray
Operating Temperature -40°C~85°C
Physical
Housing Material Polyester, Glass Filled
Shell Material POLYETHYLENE
Mounting Type Through Hole
Contact Material Copper Alloy
Supply Chain
Factory Lead Time 24 Weeks
